NOIL2SC1300A-GDC - onsemi

Description: CMOS Image Sensor, High Speed, 1.3 MP (SXGA) LVDS Output, Bayer Color, No Microlens, micro-PGA package, sealed glass (D263)

Download NOIL2SC1300A-GDC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NOIL2SC1300A-GDC - onsemi - PCB symbol
click to zoom
PCB Footprints

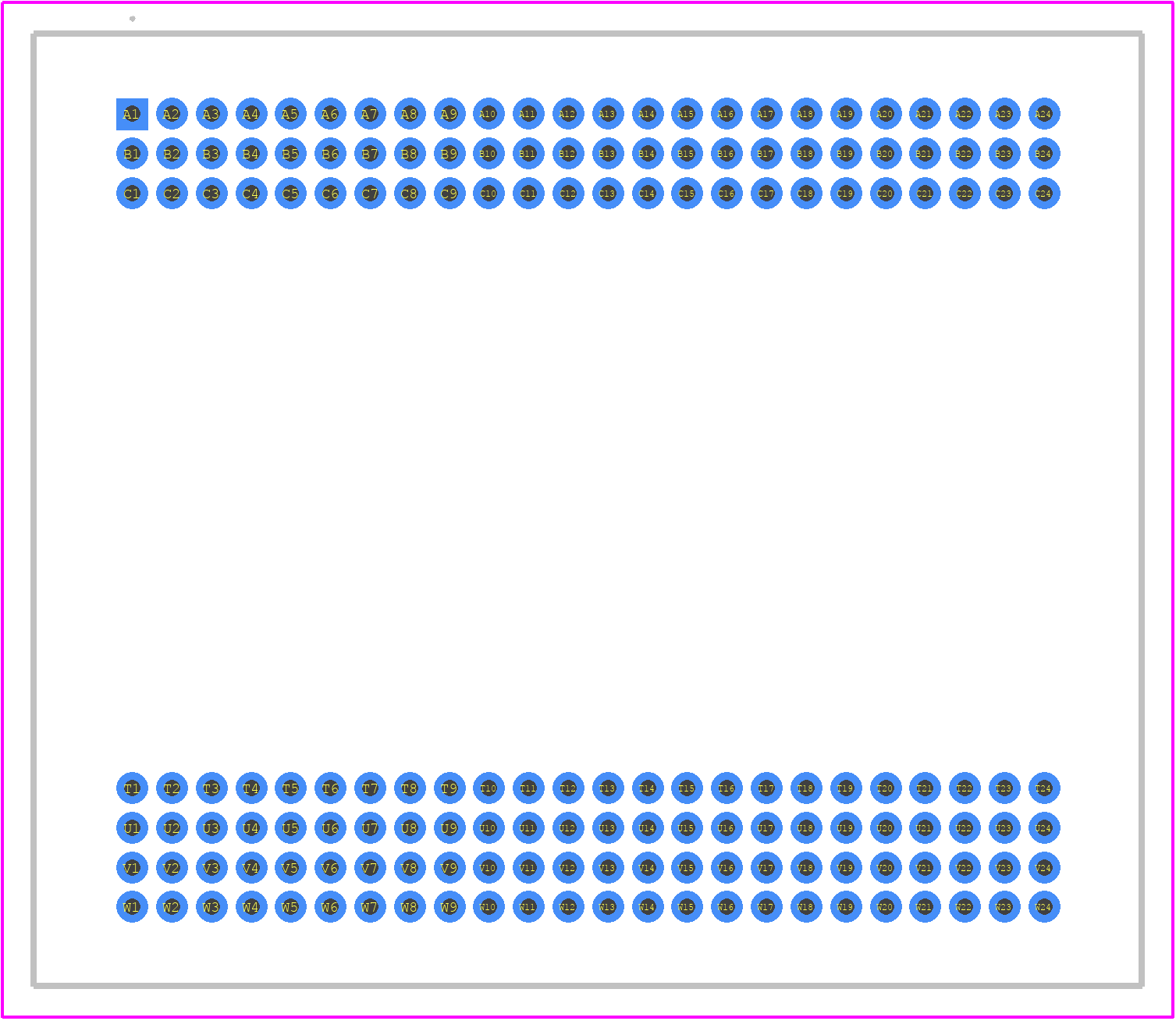

NOIL2SC1300A-GDC - onsemi PCB footprint - Other - Other - CPGA168, 35.50x30.50 CASE 107DH ISSUE O
click to zoom
3D Models
NOIL2SC1300A-GDC - onsemi - 3D model - Other - CPGA168, 35.50x30.50 CASE 107DH ISSUE O
click to zoom

NOIL2SC1300A-GDC Details

  • Manufacturer Part Number:

    NOIL2SC1300A-GDC

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    CPGA168

  • Package Description:

    UPGA-168

  • Pin Count:

    168

  • Manufacturer Package Code:

    107DH

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Array Type:

    FRAME

  • Body Breadth:

    30.5 mm

  • Body Height:

    3.75 mm

  • Body Length or Diameter:

    35.5 mm

  • Dynamic Range:

    57 dB

  • Frame Rate:

    500 fps

  • Horizontal Pixel:

    1280

  • Housing:

    CERAMIC

  • JESD-609 Code:

    e3

  • Master Clock:

    315 MHz

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    70 °C

  • Optical Format:

    1.4 inch

  • Output Interface Type:

    3-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Pixel Size:

    14X14 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CMOS

  • Spectral Response (nm):

    400-1000

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    1024

NOIL2SC1300A-GDC Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a stable voltage supply and a bias current of 10mA to 20mA. A voltage regulator and a bias resistor can be used to set the bias voltage to 1.3V. The bias current should be set to 15mA for optimal performance.
  • The device is rated for operation from -40°C to 125°C. However, the optimal operating temperature range is from 0°C to 85°C for maximum performance and reliability.
  • The device has built-in ESD protection, but additional protection measures such as ESD diodes and resistors can be added to the PCB design to further protect the device from electrostatic discharge.
  • The device should be stored in a dry, cool place away from direct sunlight. It should be handled with anti-static wrist straps and mats to prevent ESD damage. The device should not be exposed to moisture or extreme temperatures during storage or handling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NOIL2SC1300A-GDC Overview

Use the download button to access the NOIL2SC1300A-GDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NOIL2, or try a keyword search, such as Image Sensors
