NOIP1FN025KA-GTI footprint, schematic symbol and 3D model by onsemi

Symbol

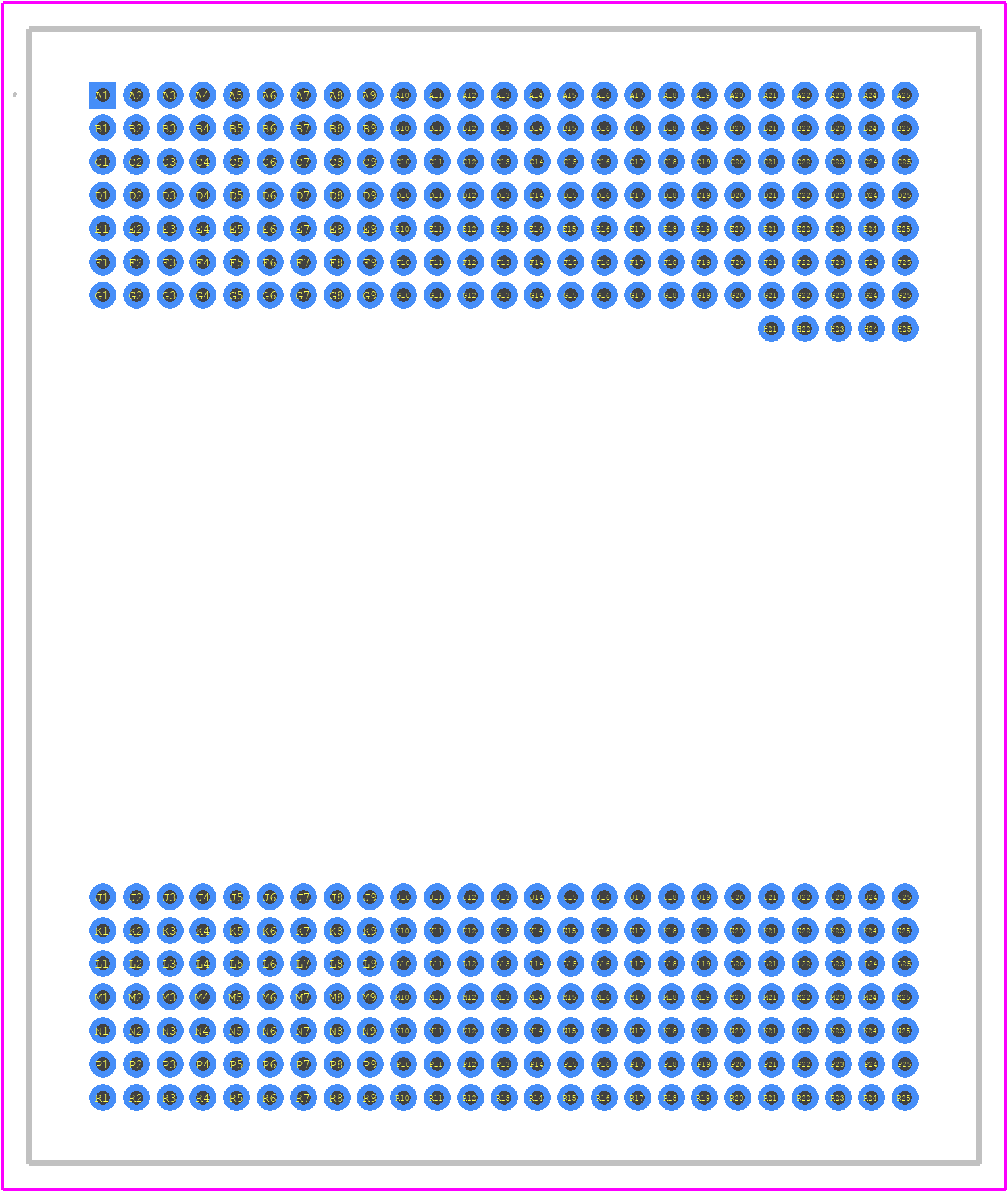

PCB Footprints

3D Models

NOIP1FN025KA-GTI Details

Manufacturer Part Number:
NOIP1FN025KA-GTI
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
CPGA-355
Manufacturer Package Code:
107DJ
Country Of Origin:
Thailand
Factory Lead Time:
20 Weeks
Date Of Intro:
2018-05-09
Manufacturer:
onsemi
YTEOL:
8.6
Additional Feature:
GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE
Array Type:
FRAME
Body Breadth:
36.1 mm
Body Height:
3.5 mm
Body Length or Diameter:
43.1 mm
Dynamic Range:
59 dB
Frame Rate:
80 fps
Horizontal Pixel:
5120
Master Clock:
360 MHz
Mounting Feature:
THROUGH HOLE MOUNT
Operating Current-Max:
540 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optical Format:
1.28 inch
Output Interface Type:
4-WIRE INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
RECTANGULAR
Pixel Size:
4.5X4.5 µm
Sensitivity (V/lx.s):
5.8 V/lx.s
Sensors/Transducers Type:
IMAGE SENSOR,CMOS
Spectral Response (nm):
300-1100
Supply Voltage-Max:
1.9 V
Supply Voltage-Min:
1.7 V
Surface Mount:
NO
Termination Type:
SOLDER
Vertical Pixel:
5120

The recommended PCB layout for optimal performance of NOIP1FN025KA-GTI includes using a solid ground plane, minimizing trace lengths and widths, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
Thermal management of NOIP1FN025KA-GTI can be handled by using a heat sink, thermal interface material, and ensuring good airflow around the device. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
The maximum operating temperature range for NOIP1FN025KA-GTI is -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
Yes, NOIP1FN025KA-GTI can be used in a high-vibration environment, but it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
To troubleshoot issues with NOIP1FN025KA-GTI, start by checking the device's power supply, clock signal, and data lines. Use oscilloscopes and logic analyzers to debug the issue. Also, ensure that the device is properly configured and programmed according to the datasheet.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the NOIP1FN025KA-GTI schematic symbol, PCB footprint, and 3D model.
