NOIP1FN2000A-QTI footprint, schematic symbol and 3D model by onsemi

Symbol

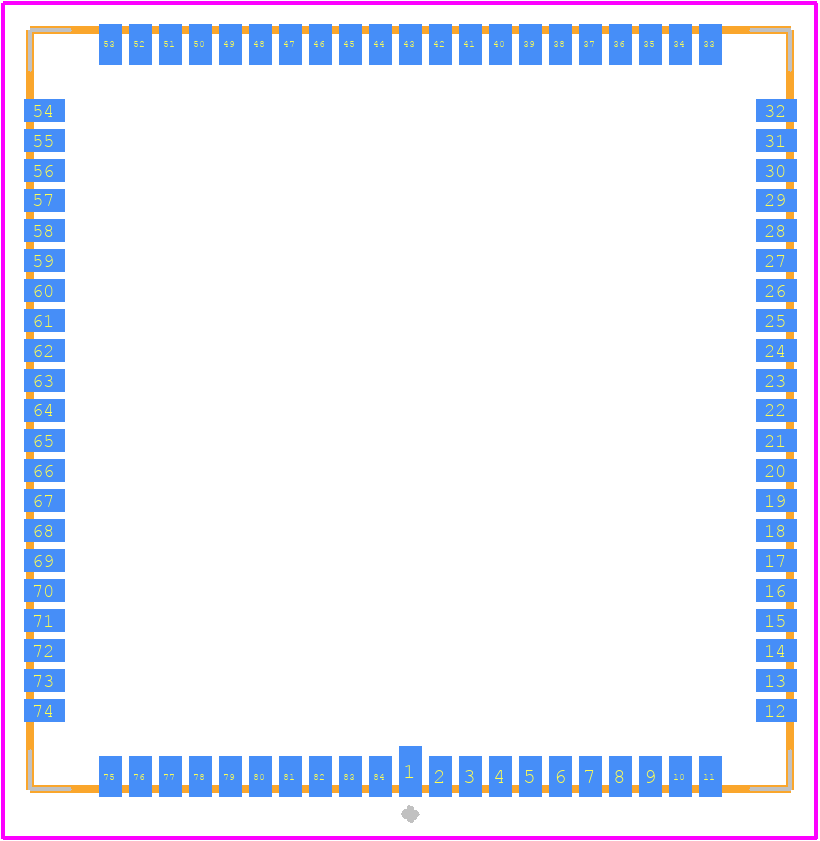

PCB Footprints

3D Models

NOIP1FN2000A-QTI Details

Manufacturer Part Number:
NOIP1FN2000A-QTI
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LCC-84
Manufacturer Package Code:
115BC
Country Of Origin:
Thailand
Factory Lead Time:
20 Weeks
Date Of Intro:
2016-08-10
Manufacturer:
onsemi
YTEOL:
6.85
Additional Feature:
GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE
Array Type:
FRAME
Body Breadth:
19 mm
Body Height:
2.41 mm
Body Length or Diameter:
19 mm
Dynamic Range:
60 dB
Frame Rate:
230 fps
Horizontal Pixel:
1920
Master Clock:
360 MHz
Mounting Feature:
SURFACE MOUNT
Operating Current-Max:
140 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optical Format:
2/3 inch
Output Interface Type:
4-WIRE INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
SQUARE
Pixel Size:
4.8X4.8 µm
Sensitivity (V/lx.s):
7.5 V/lx.s
Sensors/Transducers Type:
IMAGE SENSOR,CMOS
Spectral Response (nm):
400-1000
Supply Voltage-Max:
1.9 V
Supply Voltage-Min:
1.7 V
Surface Mount:
YES
Termination Type:
SOLDER
Vertical Pixel:
1200

A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal via array under the package is recommended. The thermal pad should be connected to a solid ground plane to dissipate heat efficiently.
Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement a thermal management system to keep the junction temperature below 125°C. Use a heat sink or thermal interface material to improve heat dissipation.
A 10nF to 100nF input capacitance is recommended to filter out high-frequency noise and ensure stable operation. The input capacitance value may need to be adjusted based on the specific application and noise environment.
Use a shielded enclosure and ensure that the device is placed at least 1mm away from any metal objects. Implement a common-mode choke or ferrite bead on the input lines to filter out high-frequency noise. Use a ground plane and ensure that all components are properly decoupled.
A 10uF to 100uF output capacitance is recommended to filter out high-frequency noise and ensure stable output voltage. The output capacitance value may need to be adjusted based on the specific application and load requirements.
