Part Image

NOIP1FN5000A-QTI - onsemi

Description: True HW scalable family concept; High configurability; Fast adaptability; Multiple windowing; Higher frame rates; IP-CDS global shutter technology; High Dynamic Range

Download NOIP1FN5000A-QTI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NOIP1FN5000A-QTI - onsemi - PCB symbol
click to zoom
PCB Footprints

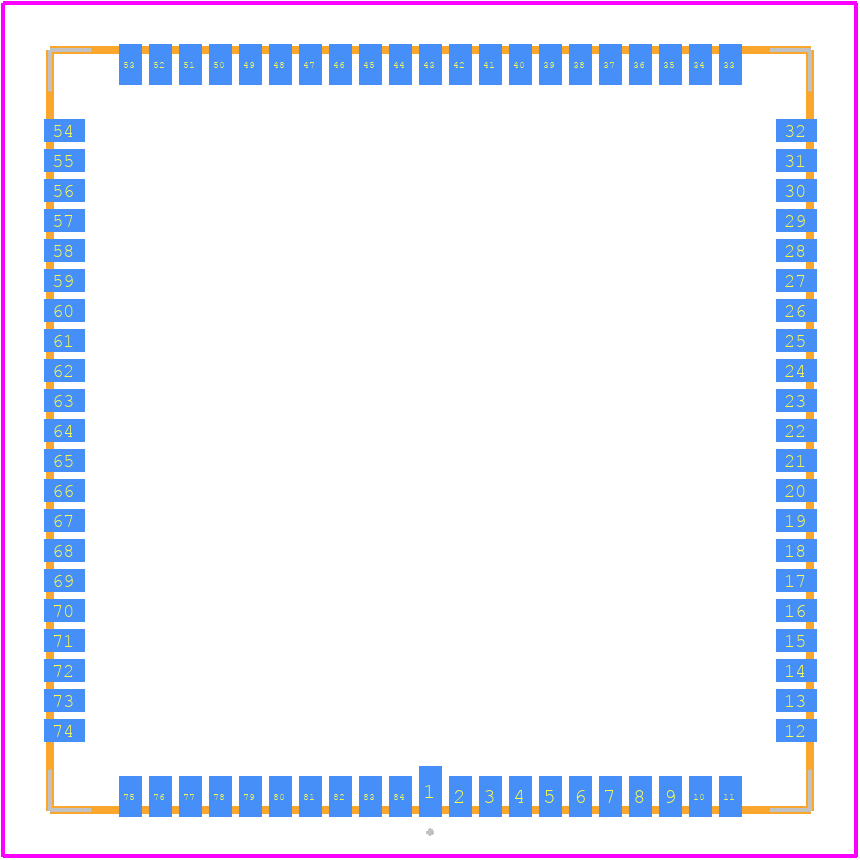

NOIP1FN5000A-QTI - onsemi PCB footprint - Other - Other - LCC84, 19x19 CASE 115BC ISSUE A
click to zoom
3D Models
NOIP1FN5000A-QTI - onsemi - 3D model - Other - LCC84, 19x19 CASE 115BC ISSUE A
click to zoom

NOIP1FN5000A-QTI Details

  • Manufacturer Part Number:

    NOIP1FN5000A-QTI

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LCC-84

  • Manufacturer Package Code:

    115BC

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-08-10

  • Manufacturer:

    onsemi

  • YTEOL:

    6.9

  • Additional Feature:

    GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE

  • Array Type:

    FRAME

  • Body Breadth:

    19 mm

  • Body Height:

    2.41 mm

  • Body Length or Diameter:

    19 mm

  • Dynamic Range:

    60 dB

  • Frame Rate:

    100 fps

  • Horizontal Pixel:

    2592

  • Master Clock:

    360 MHz

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    140 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optical Format:

    1 inch

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    SQUARE

  • Pixel Size:

    4.8X4.8 µm

  • Sensitivity (V/lx.s):

    7.5 V/lx.s

  • Sensors/Transducers Type:

    IMAGE SENSOR,CMOS

  • Spectral Response (nm):

    400-1000

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    2048

NOIP1FN5000A-QTI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • The NOIP1FN5000A-QTI requires a bias voltage of 3.3V or 5V. Ensure the bias voltage is stable and within the recommended range. A decoupling capacitor of 10uF or larger is recommended to filter out noise.
  • The NOIP1FN5000A-QTI is rated for operation from -40°C to 125°C. However, the device may not meet its specified performance at the extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Yes, the NOIP1FN5000A-QTI is designed for high-reliability applications. It is built with a robust design and undergoes rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
  • Start by verifying the power supply and bias voltage. Check for proper PCB layout and decoupling. Use an oscilloscope to monitor the input and output signals. Consult the datasheet and application notes for troubleshooting guidelines and contact onsemi support if issues persist.
