NOIP1SE5000A-QTI footprint, schematic symbol and 3D model by onsemi

Symbol

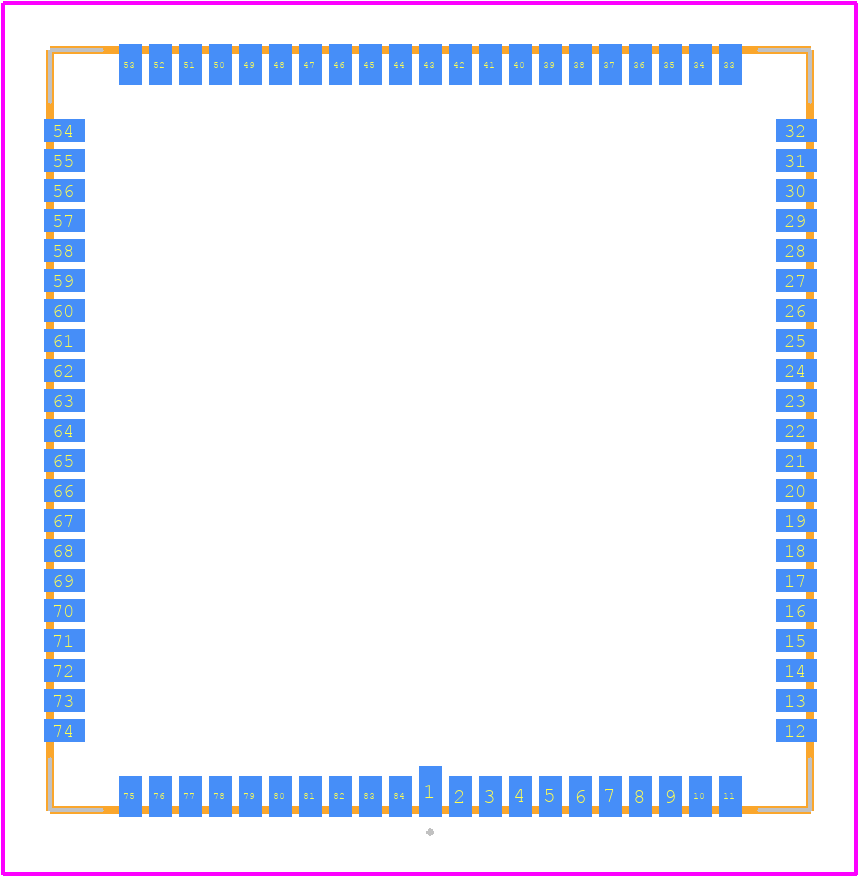

PCB Footprints

3D Models

NOIP1SE5000A-QTI Details

Manufacturer Part Number:
NOIP1SE5000A-QTI
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LCC-84
Manufacturer Package Code:
115BC
Country Of Origin:
Thailand
Factory Lead Time:
20 Weeks
Date Of Intro:
2016-08-10
Manufacturer:
onsemi
YTEOL:
6.9
Additional Feature:
GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE
Array Type:
FRAME
Body Breadth:
19 mm
Body Height:
2.41 mm
Body Length or Diameter:
19 mm
Dynamic Range:
60 dB
Frame Rate:
100 fps
Horizontal Pixel:
2592
Master Clock:
360 MHz
Mounting Feature:
SURFACE MOUNT
Operating Current-Max:
140 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optical Format:
1 inch
Output Interface Type:
4-WIRE INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
SQUARE
Pixel Size:
4.8X4.8 µm
Sensitivity (V/lx.s):
7.5 V/lx.s
Sensors/Transducers Type:
IMAGE SENSOR,CMOS
Spectral Response (nm):
400-1000
Supply Voltage-Max:
1.9 V
Supply Voltage-Min:
1.7 V
Surface Mount:
YES
Termination Type:
SOLDER
Vertical Pixel:
2048

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output pins should be routed away from each other to minimize crosstalk.
The device requires a single 3.3V power supply, and the recommended biasing is to connect the VDD pin to 3.3V through a 10uF capacitor, and the VSS pin to ground through a 10uF capacitor. Additionally, a 1kΩ resistor should be connected between the VDD and VSS pins.
The device is rated for operation from -40°C to 125°C, but the optimal operating temperature range is between 0°C to 85°C for best performance and reliability.
The device has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the device in an anti-static bag.
The device is designed to operate with input signal amplitudes up to 1Vpp, and frequencies up to 500MHz. However, the optimal input signal amplitude and frequency range may vary depending on the specific application and requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the NOIP1SE5000A-QTI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NOIP1, or try a keyword search, such as Image Sensors

Showing 0 results


Please enter a minimum 3 letters or numbers
← Prev Next →

Image	Part Number	Model
	NOIP1SE5000A-QDI onsemi CMOS Sensor, 2592 Horiz pixels, 2048 Vert pixels, 100fps, Square, Surface Mount
For a full list of alternate parts for NOIP1SE5000A-QTI, check out Findchips.com
