NOIP1SN0500A-QDI - onsemi

Description: Image Sensors PYTHON 500 COLORLVDS

Download NOIP1SN0500A-QDI Model

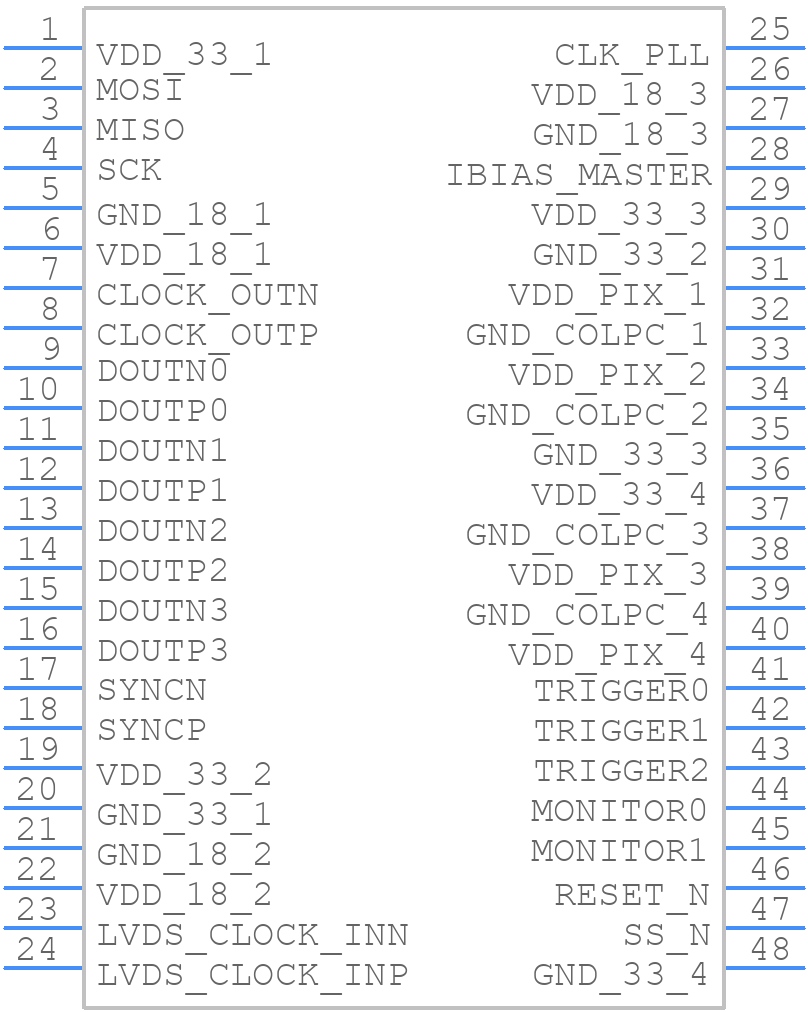

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

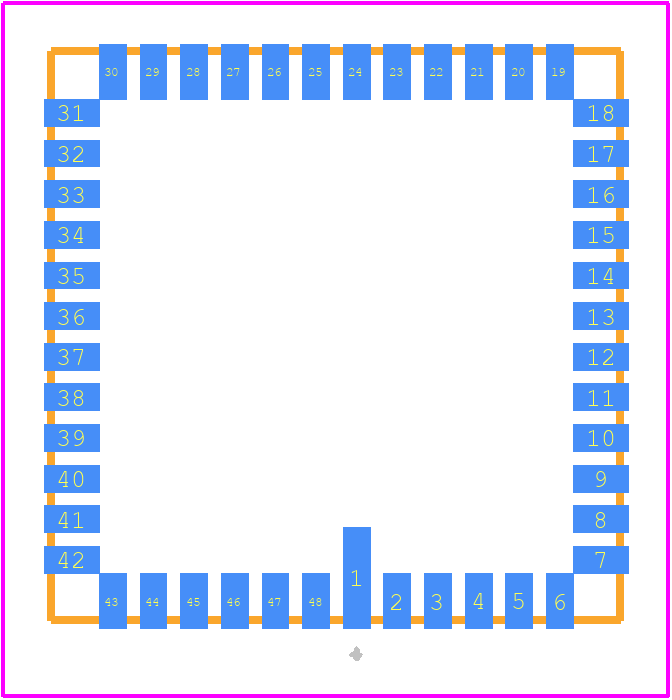

NOIP1SN0500A-QDI - onsemi PCB footprint - Other - Other - NOIP1SN0500A-QDI-3
click to zoom
3D Models
NOIP1SN0500A-QDI - onsemi  - 3D model - Other - NOIP1SN0500A-QDI-3
click to zoom

NOIP1SN0500A-QDI Details

  • Manufacturer Part Number:

    NOIP1SN0500A-QDI

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-48

  • Manufacturer Package Code:

    115AO

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 3.2 TO 3.4 V SUPPLY VOLTAGE, GLOBAL SHUTTER

  • Array Type:

    FRAME

  • Body Breadth:

    14.22 mm

  • Body Height:

    2.28 mm

  • Body Length or Diameter:

    14.22 mm

  • Dynamic Range:

    60 dB

  • Frame Rate:

    545 fps

  • Horizontal Pixel:

    800

  • Master Clock:

    72 MHz

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    80 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optical Format:

    1/3.6 inch

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Pixel Size:

    4.80X4.80 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CMOS

  • Spectral Response (nm):

    400-1000

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    600

NOIP1SN0500A-QDI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • Use a heat sink to keep the junction temperature below 125°C. Ensure good airflow and avoid thermal hotspots. Consider using a thermal interface material to improve heat transfer.
  • The maximum allowable voltage transient is 1.5 times the maximum rated voltage (50V) for a duration of 100ms. Exceeding this may damage the device.
  • Yes, but ensure that the devices are properly synchronized and that the output voltages are matched to prevent current backflow. Use a suitable ORing diode or power switch to prevent backfeed.
  • Check for input voltage, output voltage, and current sense resistor values. Verify that the device is properly heatsinked and that the PCB layout is correct. Use an oscilloscope to check for voltage transients and ringing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NOIP1SN0500A-QDI Overview

Use the download button to access the NOIP1SN0500A-QDI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NOIP1, or try a keyword search, such as Image Sensors

Parts related to NOIP1SN0500A-QDI

Showing 0 results

NOIP1SN0500A-QDI Alternates

Showing results

Image Part Number Model
Part Image NOIP1FN0500A-QDI onsemi

CMOS Sensor, 800 Horiz pixels, 600 Vert pixels, 545fps, Square, Surface Mount
