NOIP1SN2000A-QTI footprint, schematic symbol and 3D model by onsemi

Symbol

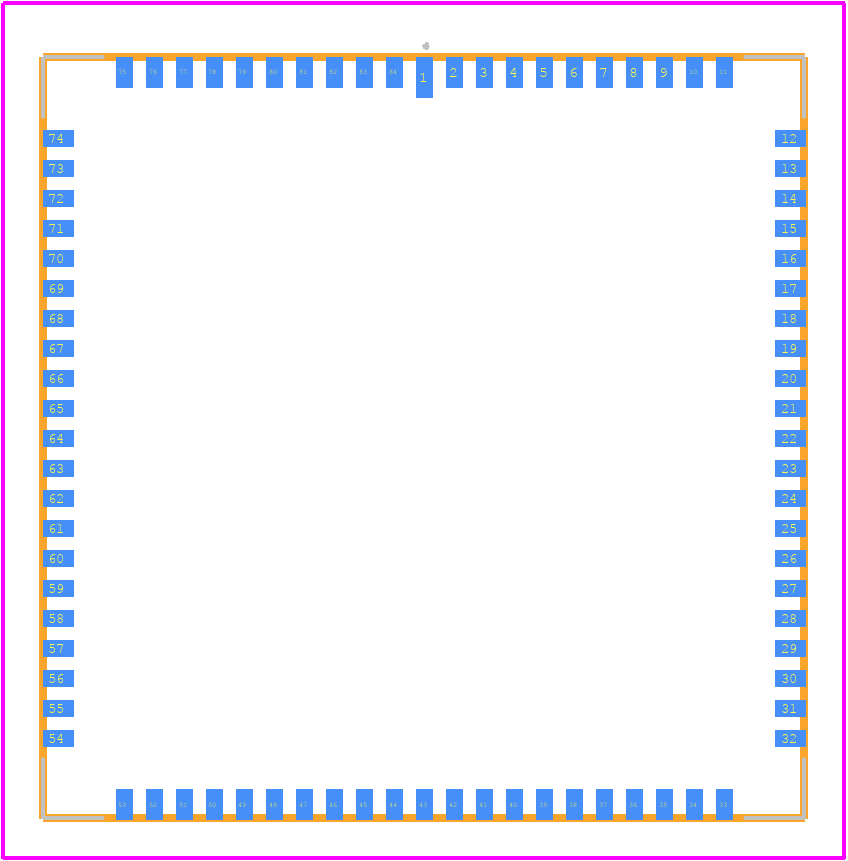

PCB Footprints

3D Models

NOIP1SN2000A-QTI Details

Manufacturer Part Number:
NOIP1SN2000A-QTI
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LCC-84
Manufacturer Package Code:
115BC
Country Of Origin:
Thailand
Factory Lead Time:
20 Weeks
Date Of Intro:
2016-08-10
Manufacturer:
onsemi
YTEOL:
6.85
Additional Feature:
GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE
Array Type:
FRAME
Body Breadth:
19 mm
Body Height:
2.41 mm
Body Length or Diameter:
19 mm
Dynamic Range:
60 dB
Frame Rate:
230 fps
Horizontal Pixel:
1920
Master Clock:
360 MHz
Mounting Feature:
SURFACE MOUNT
Operating Current-Max:
140 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optical Format:
2/3 inch
Output Interface Type:
4-WIRE INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
SQUARE
Pixel Size:
4.8X4.8 µm
Sensitivity (V/lx.s):
7.5 V/lx.s
Sensors/Transducers Type:
IMAGE SENSOR,CMOS
Spectral Response (nm):
400-1000
Supply Voltage-Max:
1.9 V
Supply Voltage-Min:
1.7 V
Surface Mount:
YES
Termination Type:
SOLDER
Vertical Pixel:
1200

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output pins should be routed away from each other to minimize crosstalk.
The NOIP1SN2000A-QTI requires a bias voltage of 2.5V to 3.5V on the VCC pin. A 1uF decoupling capacitor should be placed close to the VCC pin to ensure stable operation.
The NOIP1SN2000A-QTI is rated for operation from -40°C to 125°C. However, the device's performance may degrade at temperatures above 85°C, and it is recommended to derate the device's power handling accordingly.
The NOIP1SN2000A-QTI is sensitive to ESD. It is recommended to handle the device with an anti-static wrist strap or mat, and to use ESD-protected packaging and storage.
The NOIP1SN2000A-QTI requires a 50Ω input and output termination to ensure optimal signal integrity. A 50Ω resistor should be placed in series with the input and output pins to match the impedance of the transmission line.
