A good PCB layout for the NOIV1SE025KA-GTI should include a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10nF) close to the device. Additionally, keep the input and output traces separate to minimize noise coupling.
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and the GND pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 4.5V to 5.5V. Also, ensure that the output voltage (VOUT) is properly decoupled with a capacitor (e.g., 10uF) to reduce noise and ripple.
The maximum allowed input voltage ripple for the NOIV1SE025KA-GTI is typically around 100mV peak-to-peak. Exceeding this value may affect the device's performance and stability. It's recommended to use a low-noise power supply or add input filtering to minimize voltage ripple.
The NOIV1SE025KA-GTI is rated for operation up to 125°C (TJ). However, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines to prevent overheating.
To troubleshoot issues with the NOIV1SE025KA-GTI, start by verifying the input voltage and current, as well as the output voltage and current. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to inspect the output voltage waveform for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NOIV1SE025KA-GTI Overview

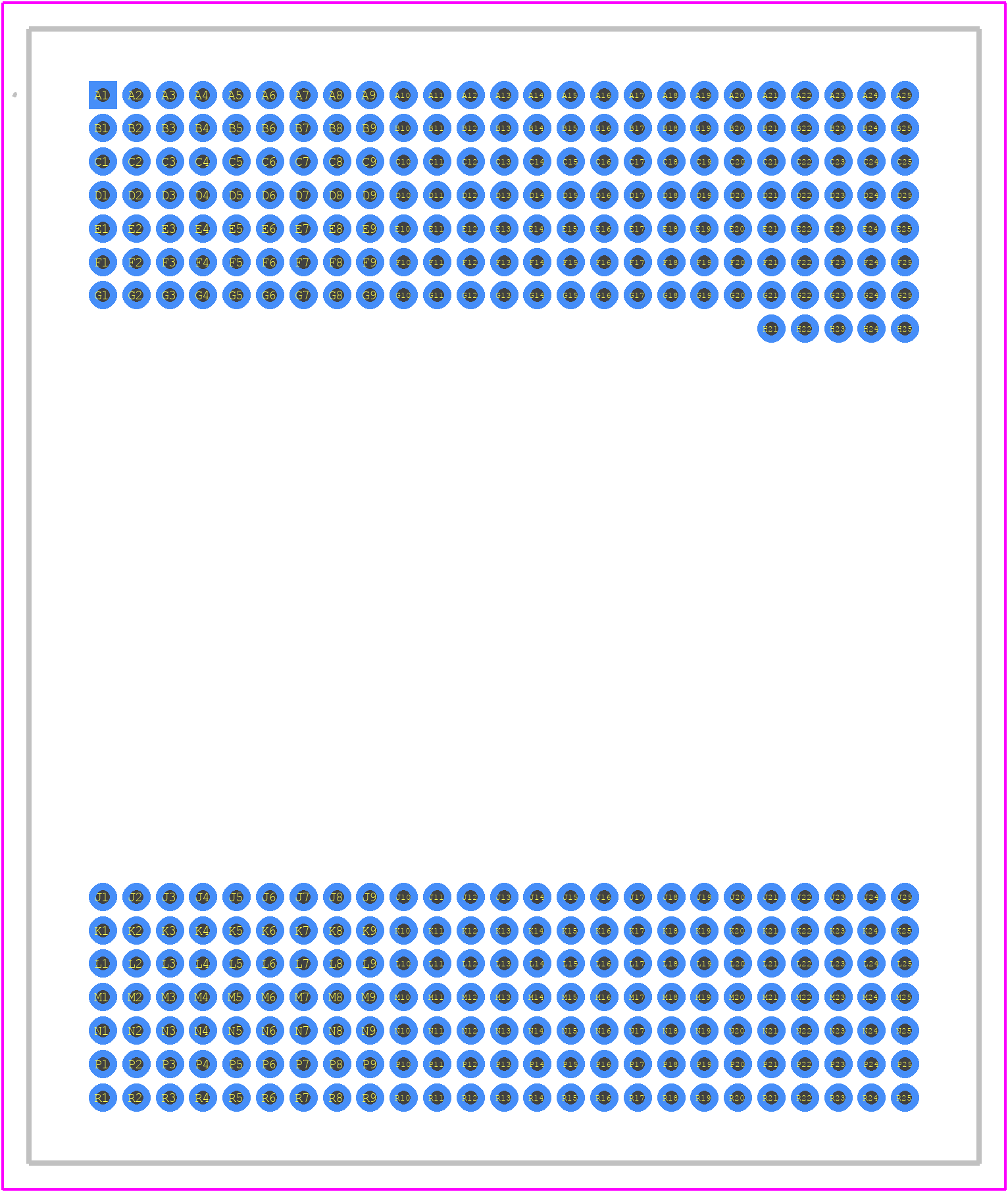

Use the download button to access the NOIV1SE025KA-GTI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NOIV1,
or try a keyword search, such as Image Sensors
