NORA-B100-00B - u-blox

Description: Bluetooth Modules - 802.15.1 Stand-alone dual-core Bluetooth 5.2 Low Energy and IEEE 802.15.4 module

Download NORA-B100-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NORA-B100-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

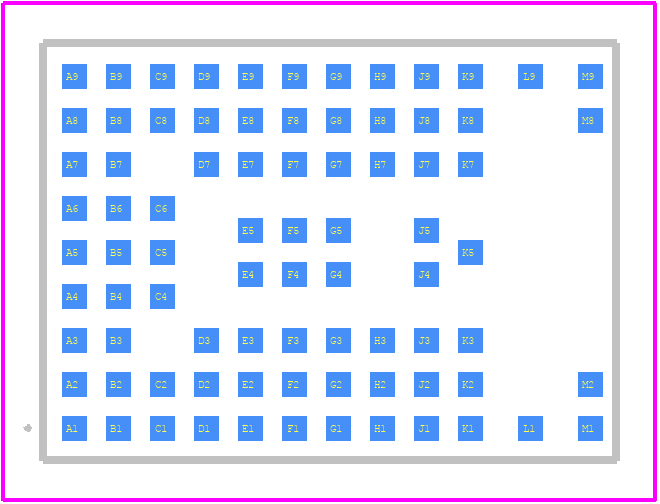

NORA-B100-00B - u-blox PCB footprint - Other - Other - 82 SMD module
click to zoom
3D Models
NORA-B100-00B - u-blox - 3D model - Other - 82 SMD module
click to zoom

NORA-B100-00B Details

  • Manufacturer Part Number:

    NORA-B100-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-82

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N82

  • Length:

    14.3 mm

  • Number of Terminals:

    82

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,82LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NORA-B100-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the enable signal (EN). This ensures that the module is properly initialized and configured.
  • The module can be configured using the u-blox UBX protocol, which allows you to select the desired GNSS system and configure other settings such as the signal frequency and data rate. Refer to the u-blox documentation for more information.
  • The maximum update rate of the NORA-B100-00B module is 10 Hz, which means it can provide location data up to 10 times per second.
  • Yes, the module is designed to operate in a wide range of temperatures (-40°C to +85°C) and humidity levels (up to 95% RH). However, it's recommended to follow proper thermal management and humidity protection measures to ensure reliable operation.
  • u-blox provides a range of tools and resources to help troubleshoot issues, including the u-blox Center software, which allows you to monitor and configure the module. Additionally, refer to the module's datasheet and application notes for troubleshooting guidelines.
