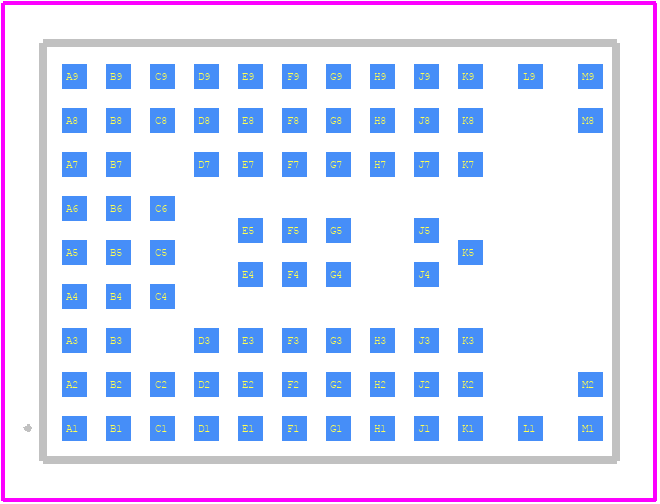

PCB Footprints
NORA-B101-00B - u-blox PCB footprint - Other - Other - NORA-B101-00B-3
click to zoom
3D Models
NORA-B101-00B - u-blox - 3D model - Other - NORA-B101-00B-3
click to zoom

NORA-B101-00B Details

  • Manufacturer Part Number:

    NORA-B101-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-82

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N82

  • Length:

    14.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    82

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,82LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NORA-B101-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the enable signal (EN). This ensures that the module is properly initialized and configured.
  • The NORA-B101-00B can be configured for use in a specific region or country by setting the appropriate frequency band and regulatory settings using the AT command interface or the u-blox configuration software.
  • The maximum transmit power of the NORA-B101-00B is +23 dBm for LTE-M and +20 dBm for NB-IoT, but this can be limited by the regulatory requirements of the region or country in which it is used.
  • Yes, the NORA-B101-00B supports multi-band and multi-mode operation, allowing it to operate on different frequency bands and modes (e.g. LTE-M, NB-IoT, GSM) depending on the specific use case and region.
  • The typical current consumption of the NORA-B101-00B is around 20-30 mA in idle mode and up to 500 mA during transmission, depending on the specific use case and configuration.
