NORA-B106-00B - u-blox

Description: 802.15.4, Bluetooth Bluetooth v5.2, Thread, Zigbee® Transceiver Module 2.4GHz PCB Trace Surface Mount

Download NORA-B106-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NORA-B106-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

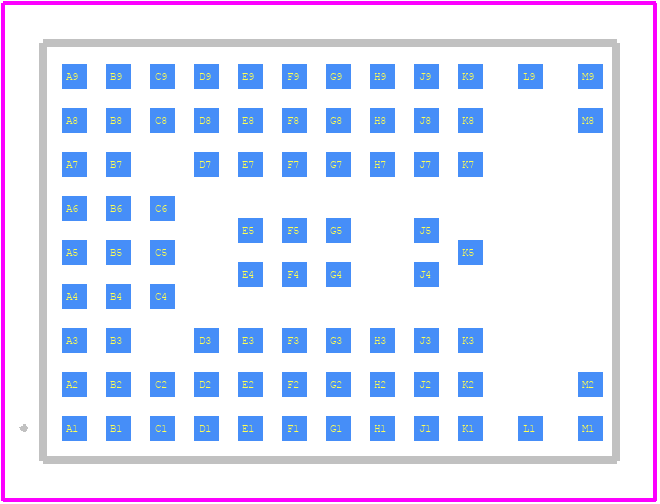

NORA-B106-00B - u-blox PCB footprint - Other - Other - NORA-B106-00B-3
click to zoom
3D Models
NORA-B106-00B - u-blox - 3D model - Other - NORA-B106-00B-3
click to zoom

NORA-B106-00B Details

  • Manufacturer Part Number:

    NORA-B106-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-82

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N82

  • Length:

    14.3 mm

  • Number of Terminals:

    82

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,82LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NORA-B106-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the enable signal (EN). This ensures that the module is properly initialized and configured.
  • The NORA-B106-00B can be configured for use in a specific region or country by setting the appropriate frequency band and regulatory settings using the AT command interface or the u-blox CellLocate software.
  • The maximum current consumption of the NORA-B106-00B is approximately 450 mA during transmission and 20 mA during reception, according to the datasheet.
  • Yes, the NORA-B106-00B can be used in a multi-module configuration, but it requires careful planning and design to ensure that the modules do not interfere with each other.
  • Troubleshooting issues with the NORA-B106-00B typically involves checking the power supply, antenna connections, and configuration settings. The u-blox CellLocate software can also be used to diagnose and troubleshoot issues.
