NORA-B126-00B - u-blox

Description: Stand-alone dual-core Bluetooth® 5.2 Low Energy and IEEE 802.15.4 module

Download NORA-B126-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NORA-B126-00B - u-blox - PCB symbol
click to zoom

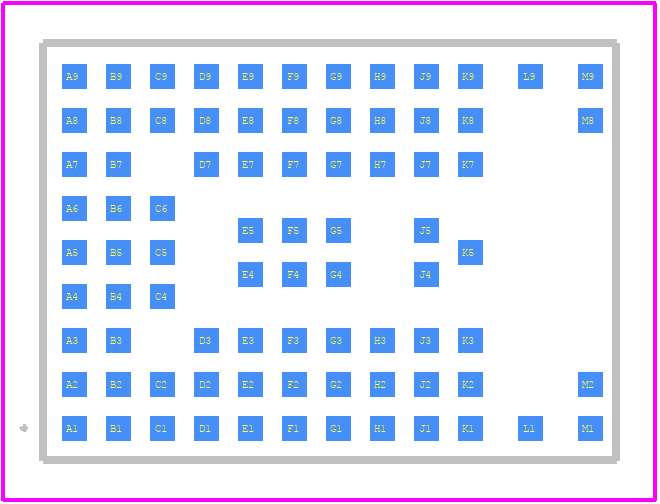

PCB Footprints
NORA-B126-00B - u-blox PCB footprint - Other - Other - NORA-B126-00B-2
click to zoom
3D Models
NORA-B126-00B - u-blox - 3D model - Other - NORA-B126-00B-2
click to zoom

NORA-B126-00B Details

  • Manufacturer Part Number:

    NORA-B126-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-82

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N82

  • Length:

    14.3 mm

  • Number of Terminals:

    82

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,82LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    1.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NORA-B126-00B Frequently Asked Questions (FAQs)

  • The typical power consumption of the NORA-B126-00B module is around 20-30 mA in continuous transmission mode, and around 10-20 mA in standby mode, depending on the specific use case and configuration.
  • The NORA-B126-00B module has a built-in thermal management system that includes thermal pads and a heat sink to dissipate heat. Additionally, the module is designed to operate within a temperature range of -40°C to +85°C, making it suitable for a wide range of applications.
  • The NORA-B126-00B module supports a maximum data transfer rate of up to 1 Mbps in half-duplex mode, making it suitable for a wide range of IoT applications that require moderate data transfer rates.
  • Yes, the NORA-B126-00B module supports various security features, including AES-128 encryption, secure boot, and secure firmware updates, to ensure the integrity and confidentiality of data transmitted over the air.
  • The range of the NORA-B126-00B module depends on various factors, including the environment, antenna design, and transmission power. However, in general, the module can achieve a range of up to 10 km in urban areas and up to 40 km in rural areas, depending on the specific use case and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NORA-B126-00B Overview

Use the download button to access the NORA-B126-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NORA-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
