NORA-W301-00B - u-blox

Description: Multiprotocol Modules RTL8720DF, 802.11abgn+BLE, antenna pin, open CPU

Download NORA-W301-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NORA-W301-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

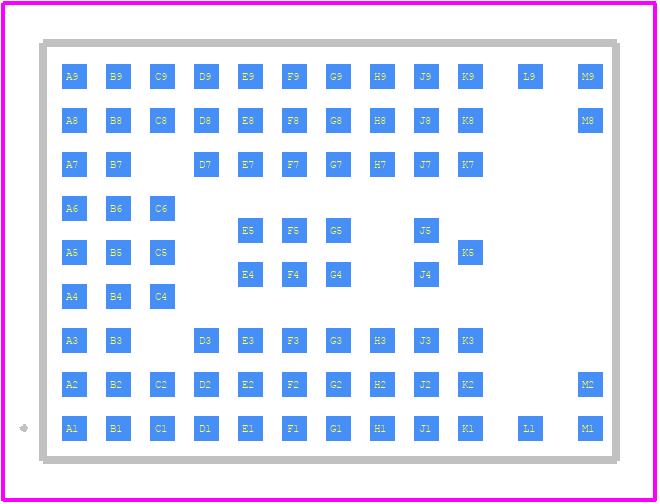

NORA-W301-00B - u-blox PCB footprint - Other - Other - NORA-W301-00B-1
click to zoom
3D Models
NORA-W301-00B - u-blox - 3D model - Other - NORA-W301-00B-1
click to zoom

NORA-W301-00B Details

  • Manufacturer Part Number:

    NORA-W301-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-82

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XXMA-N82

  • Length:

    14.3 mm

  • Number of Terminals:

    82

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,82LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10.4 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

NORA-W301-00B Frequently Asked Questions (FAQs)

  • The typical power consumption of the NORA-W301-00B module is around 20-30 mA in continuous transmission mode, and around 10-20 mA in standby mode, depending on the specific use case and configuration.
  • You can configure the NORA-W301-00B module using AT commands, which are documented in the u-blox AT Commands Manual. You'll need to set the APN, username, and password for your specific cellular network, as well as configure other settings such as the frequency band and data mode.
  • The NORA-W301-00B module supports maximum downlink data transfer rates of up to 100 Mbps and uplink data transfer rates of up to 50 Mbps, depending on the specific cellular network and configuration.
  • You can integrate the NORA-W301-00B module with your microcontroller or single-board computer using a serial interface such as UART, SPI, or I2C. You'll need to connect the module's TX and RX pins to the corresponding pins on your microcontroller or single-board computer, and then use a serial communication library to send and receive data.
  • The NORA-W301-00B module has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.
