NOS11-S1F1-2000-A - XFCN

Description: Plug-in 1.4mm Card Slot Nano SIM card SMD SIM Card Connectors ROHS, 50mΩ, 500VAC, 0.5A

Download NOS11-S1F1-2000-A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NOS11-S1F1-2000-A model

Email notifications will be applied after download.

Send part feedback

Symbol

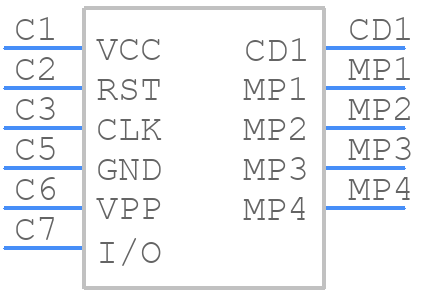

NOS11-S1F1-2000-A - XFCN - PCB symbol

PCB Footprints

NOS11-S1F1-2000-A - XFCN PCB footprint - Other - Other - NOS11-S1F1-2000-A-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for NOS11-S1F1-2000-A
Part Number NOS11-S1F1-2000-A
Manufacturer XFCN
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - NOS11-S1F1-2000-A-2
Released Date Mar 28, 2025
Last Modified Date Mar 28, 2025 8:39 PM UTC
Pinout / Pin List Click Here (Member Only)

NOS11-S1F1-2000-A Details

Manufacturer Part Number:
NOS11-S1F1-2000-A
Manufacturer:
Dongguan Xingfei Connector Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

NOS11-S1F1-2000-A Overview

Use the download button to access the NOS11-S1F1-2000-A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NOS11, or try a keyword search, such as Electric Fuses
