NP89-22508-G4-BF footprint, schematic symbol and 3D model by Yamaichi

Symbol

click to zoom

PCB Footprints

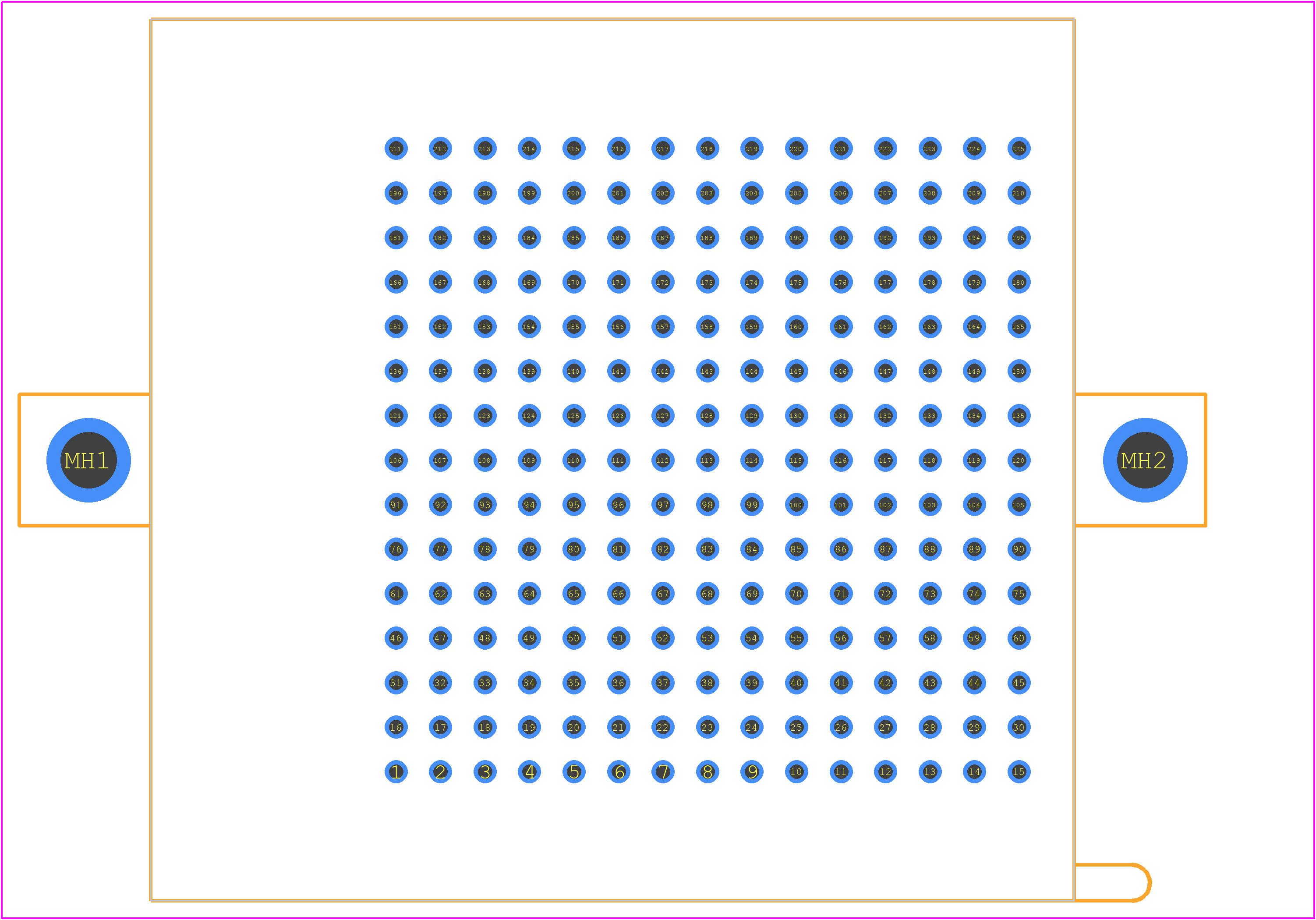

NP89-22508-G4-BF - Yamaichi PCB footprint - Other - Other - NP89-22508-G4-BF-3-2020

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NP89-22508-G4-BF
Part Number NP89-22508-G4-BF
Manufacturer Yamaichi
Pin Count 227
Part Category Connector
Package Category Other
Footprint Name Other - NP89-22508-G4-BF-3-2020
Released Date Jun 4, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NP89-22508-G4-BF Details

Manufacturer Part Number:
NP89-22508-G4-BF
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Yamaichi Electronics Co Ltd
Additional Feature:
RIGHT OR LEFT HAND HANDLE
Body Breadth:
1.98 inch
Body Depth:
0.374 inch
Body Length:
2.575 inch
Contact Configuration:
15X15
Contact Material:
BE-CU
Contact Style:
RND PIN-SKT
Device Socket Type:
IC SOCKET
Device Type Used On:
PGA225
Dielectric Withstanding Voltage:
700VAC V
Housing Material:
POLYETHERIMIDE
Insulation Resistance:
1000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
225
Operating Temperature-Max:
170 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.1 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

NP89-22508-G4-BF Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow this torque range to ensure reliable connections and prevent damage to the terminals.
Yes, the NP89-22508-G4-BF is designed to withstand vibrations and shocks. It meets the IEC 60512-6-2 standard for vibration and shock resistance, making it suitable for use in harsh environments.
The operating temperature range for the NP89-22508-G4-BF is -40°C to 105°C. It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
Yes, the NP89-22508-G4-BF is compatible with lead-free soldering processes. It's designed to meet the requirements of the RoHS directive and can be used with lead-free soldering techniques.
The mating cycle life of the NP89-22508-G4-BF is 500 cycles minimum. This means that the connector can withstand at least 500 mating cycles without significant degradation in its performance.

Trust Checks

Expert Contribution

System Verified

Community Approved

NP89-22508-G4-BF Overview

Use the download button to access the NP89-22508-G4-BF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NP89-, or try a keyword search, such as Sockets and Chip Carriers
