NPA-500B-001D - Amphenol

Description: Board Mount Pressure Sensor 0psi to 1psi Differential 14-Pin SOIC T/R/Tube

Download NPA-500B-001D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

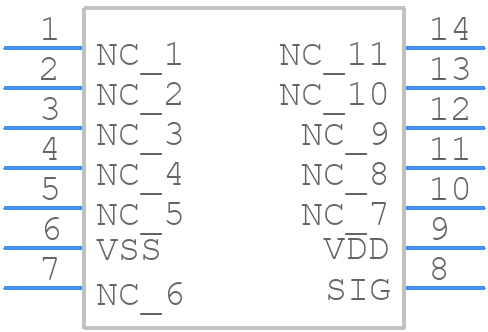

Symbol
NPA-500B-001D - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPA-500B-001D - Amphenol PCB footprint - Other - Other - NPA-500B-001D-3
click to zoom
3D Models
NPA-500B-001D - Amphenol - 3D model - Other - NPA-500B-001D-3
click to zoom

NPA-500B-001D Details

  • Manufacturer Part Number:

    NPA-500B-001D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    7.52 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    11.36 mm

  • JESD-609 Code:

    e4

  • Linearity (%):

    0.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    75MV

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-120mV

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

NPA-500B-001D Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the NPA-500B-001D is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the NPA-500B-001D has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The operating temperature range of the NPA-500B-001D is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of environments.
  • Yes, the NPA-500B-001D can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-500B-001D Overview

Use the download button to access the NPA-500B-001D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-5, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
