- Part Number NPA-500B-015G
- Manufacturer Amphenol
- Pin Count 14
- Part Category Connector
- Package Category Other
- Footprint Name Other - NPA-500B-015G-4
- Released Date Oct 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NPA-500B-015G Details
-
Manufacturer Part Number:
NPA-500B-015G
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOIC-14
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7
-
Accuracy-Max (%):
1.5%
-
Body Breadth:
7.52 mm
-
Body Height:
3.3 mm
-
Body Length or Diameter:
11.36 mm
-
JESD-609 Code:
e4
NPA-500B-015G Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the NPA-500B-015G is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-5015, which includes sinusoidal vibration testing at 10-2000 Hz, 10 G peak acceleration.
-
The NPA-500B-015G is designed to operate in a wide range of temperatures (-55°C to 150°C) and can withstand high humidity. However, it's essential to follow the recommended derating guidelines for temperature and humidity to ensure reliable performance.
-
The NPA-500B-015G has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent connections and disconnections are required.
-
The NPA-500B-015G is designed to be compatible with other manufacturers' mating connectors that meet the MIL-DTL-5015 specification. However, it's recommended to verify compatibility and perform testing before using the connector with other manufacturers' products.
Trust Checks
Expert Contribution
System Verified
Community Approved
NPA-500B-015G Overview

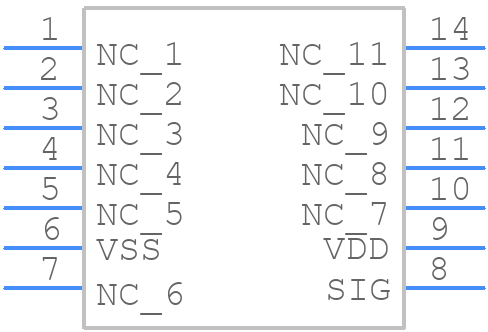

Use the download button to access the NPA-500B-015G schematic symbol, PCB footprint, and 3D model.
