NPA-500B-10WD - Amphenol

Description: Board Mount Pressure Sensors 10" H2O Barbed Amplified output

Download NPA-500B-10WD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

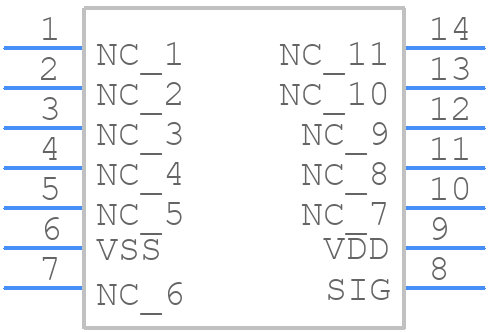

NPA-500B-10WD - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPA-500B-10WD - Amphenol PCB footprint - Other - Other - NPA-500B-10WD-1
click to zoom
3D Models
NPA-500B-10WD - Amphenol - 3D model - Other - NPA-500B-10WD-1
click to zoom

NPA-500B-10WD Details

  • Manufacturer Part Number:

    NPA-500B-10WD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    7.52 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    11.36 mm

  • JESD-609 Code:

    e4

  • Linearity (%):

    0.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    75MV

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-120mV

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

NPA-500B-10WD Frequently Asked Questions (FAQs)

  • The operating temperature range of the NPA-500B-10WD is -55°C to 125°C.
  • Yes, the NPA-500B-10WD is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • The NPA-500B-10WD has a mating cycle life of 500 cycles minimum, ensuring reliable connections even in demanding applications.
  • Yes, the NPA-500B-10WD is part of the NPA series and is compatible with other connectors in the same series, allowing for flexibility in design and assembly.
  • The typical lead time for delivery of the NPA-500B-10WD varies depending on the supplier and quantity, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-500B-10WD Overview

Use the download button to access the NPA-500B-10WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-5, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
