NPA-700B-001D - Amphenol

Description: Board Mount Pressure Sensors 1 PSI Differential Barbed I2C

Download NPA-700B-001D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

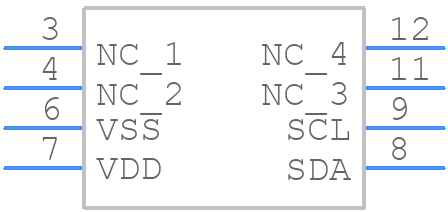

NPA-700B-001D - Amphenol - PCB symbol
click to zoom
PCB Footprints

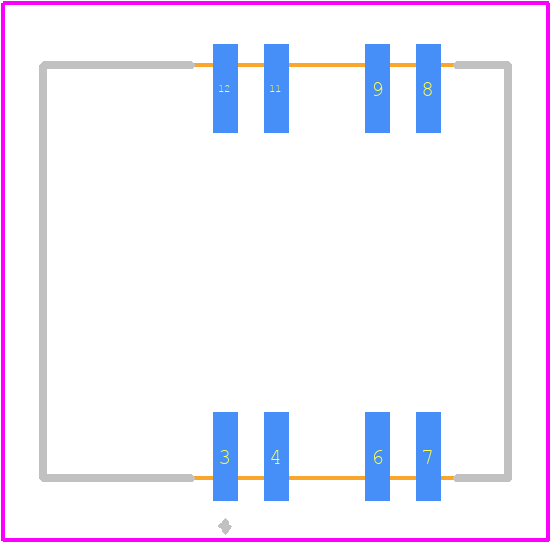

NPA-700B-001D - Amphenol PCB footprint - Other - Other - NPA-700B-001D-3
click to zoom
3D Models
NPA-700B-001D - Amphenol - 3D model - Other - NPA-700B-001D-3
click to zoom

NPA-700B-001D Details

  • Manufacturer Part Number:

    NPA-700B-001D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    7.52 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    11.36 mm

  • JESD-609 Code:

    e4

  • Linearity (%):

    0.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Offset-Nom:

    75MV

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    40-120mV

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Packing Method:

    CARTON; TR; TUBE

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER
