NPA-700B-10WD - Amphenol

Description: AMPHENOL ADVANCED SENSORS - NPA-700B-10WD - PRESSURE SENSOR, 0 TO 10INCH H20I, 2, BARBED

Download NPA-700B-10WD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

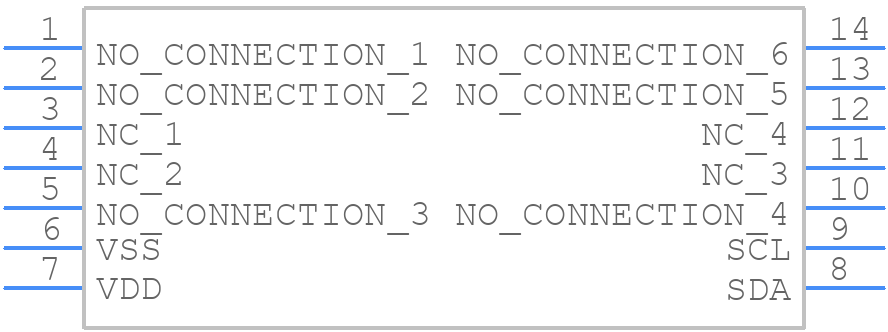

Symbol
NPA-700B-10WD - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPA-700B-10WD - Amphenol PCB footprint - Other - Other - NPA-700B-10WD
click to zoom
3D Models
NPA-700B-10WD - Amphenol - 3D model - Other - NPA-700B-10WD
click to zoom

NPA-700B-10WD Details

  • Manufacturer Part Number:

    NPA-700B-10WD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    7.52 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    11.36 mm

  • JESD-609 Code:

    e4

  • Linearity (%):

    0.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    14

  • Offset-Nom:

    75MV

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    40-120mV

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

NPA-700B-10WD Frequently Asked Questions (FAQs)

  • The recommended torque for the coupling nut is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and prevent damage to the connector.
  • Yes, the NPA-700B-10WD is compatible with other connectors in the NPA series, but it's essential to verify the specific configuration and mating requirements to ensure proper compatibility.
  • The operating temperature range for the NPA-700B-10WD is -40°C to 125°C (-40°F to 257°F), but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, the NPA-700B-10WD is designed to withstand high-vibration environments, but it's crucial to follow proper installation and mounting procedures to ensure reliable performance and prevent connector damage.
  • The recommended cable size and type for the NPA-700B-10WD is 10 AWG to 24 AWG, with a maximum outer diameter of 0.250 inches (6.35 mm). It's essential to consult the datasheet and manufacturer's recommendations for specific cable requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-700B-10WD Overview

Use the download button to access the NPA-700B-10WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-7, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
