NPA1006 - MACOM

Description: GaN Wideband Power Amplifier, 28 V, 12.5 W 20 - 1000 MHz, 8-Lead PDFN

Download NPA1006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

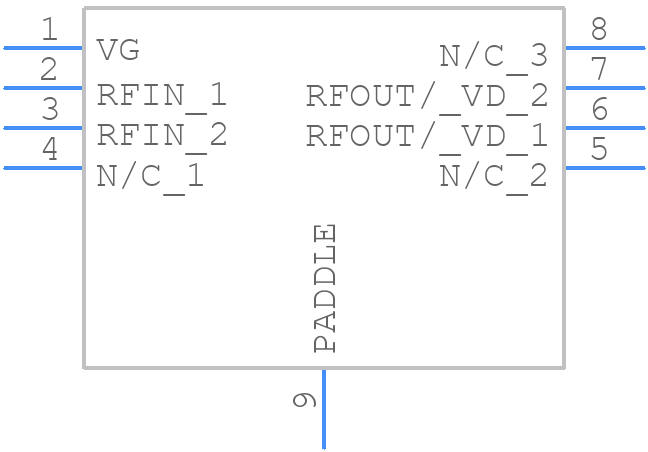

NPA1006 - MACOM - PCB symbol
click to zoom
PCB Footprints
NPA1006 - MACOM PCB footprint - Small Outline No-lead - Small Outline No-lead - 8_lead PDFN
click to zoom
3D Models
NPA1006 - MACOM - 3D model - Small Outline No-lead - 8_lead PDFN
click to zoom

NPA1006 Details

  • Manufacturer Part Number:

    NPA1006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-8

  • Manufacturer:

    MACOM

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12.5 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    20 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.23

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Technology:

    HEMT

  • VSWR-Max:

    15

NPA1006 Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip line design for the RF signal path. A detailed layout guide is available in the MACOM application note AN-2171.
  • The NPA1006 requires a bias voltage of 3.3V to 5V, and a bias current of 10mA to 20mA. A voltage regulator and a current limiting resistor are recommended to ensure stable biasing. Refer to the datasheet for a typical bias circuit diagram.
  • The NPA1006 can handle up to 2W of continuous wave (CW) power, and up to 10W of peak power for pulsed signals. However, the device may require additional heat sinking for high-power applications.
  • The NPA1006 has an input impedance of 50 ohms and an output impedance of 25 ohms. A conjugate match is recommended for optimal performance. MACOM provides a matching network design guide in the application note AN-2172.
  • The NPA1006 is specified to operate from -40°C to 85°C. However, the device may be operated at temperatures up to 100°C with reduced performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA1006 Overview

Use the download button to access the NPA1006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA10, or try a keyword search, such as RF/Microwave Amplifiers
