A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output traces should be kept short and 50-ohm matched to minimize reflections and ensure maximum power transfer.
The NPA1007 requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device. A voltage regulator and a current limiting resistor can be used to achieve this.
The NPA1007 can handle up to 10W of input power. However, it's recommended to derate the power handling to 7-8W to ensure reliable operation and to prevent overheating.
The NPA1007 has an input impedance of 50 ohms and an output impedance of 50 ohms. Use a pi-network or a T-network to match the input and output impedance to the device. The matching network should be designed to provide a 50-ohm match at the operating frequency.
The NPA1007 is designed to operate from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. Ensure the device is operated within the recommended temperature range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NPA1007 Overview

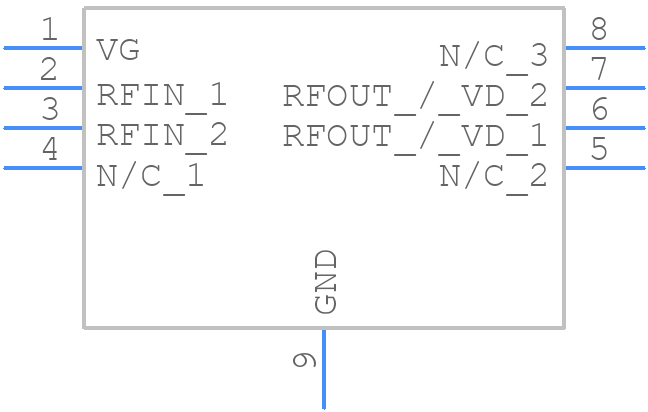

Use the download button to access the NPA1007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA10,
or try a keyword search, such as RF/Microwave Amplifiers
