A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The input and output traces should be kept short and 50-ohm matched to minimize reflections and ensure maximum power transfer.
The NPA1008 requires a bias voltage of 5V and a bias current of 200mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device. A voltage regulator and a current limiting resistor can be used to achieve this.
The NPA1008 can handle input powers up to +20 dBm. Exceeding this limit may cause damage to the device or affect its performance.
The NPA1008 has an input impedance of 50 ohms and an output impedance of 50 ohms. Use a pi-network or a T-network to match the input and output impedance to ensure maximum power transfer and minimal reflections.
The NPA1008 operates over a temperature range of -40°C to +85°C. Operating the device outside this range may affect its performance or reduce its lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NPA1008 Overview

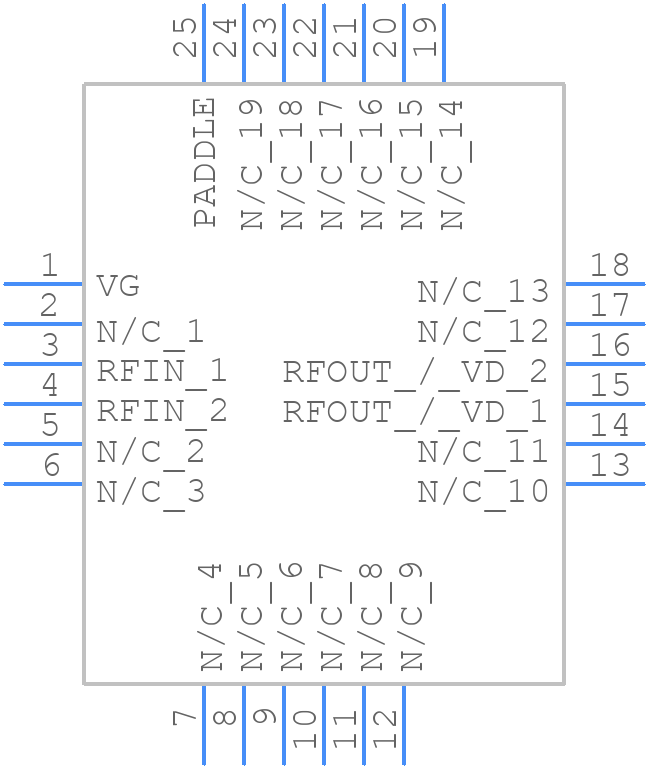

Use the download button to access the NPA1008 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA10,
or try a keyword search, such as RF/Microwave Amplifiers
