NPH10S2403IC - Murata Electronics

Description: Murata Power Solutions NPH10S 10W Isolated DC-DC Converter Through Hole, Vin 18 → 36 V dc, Vout 3.4V dc

Download NPH10S2403IC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NPH10S2403IC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

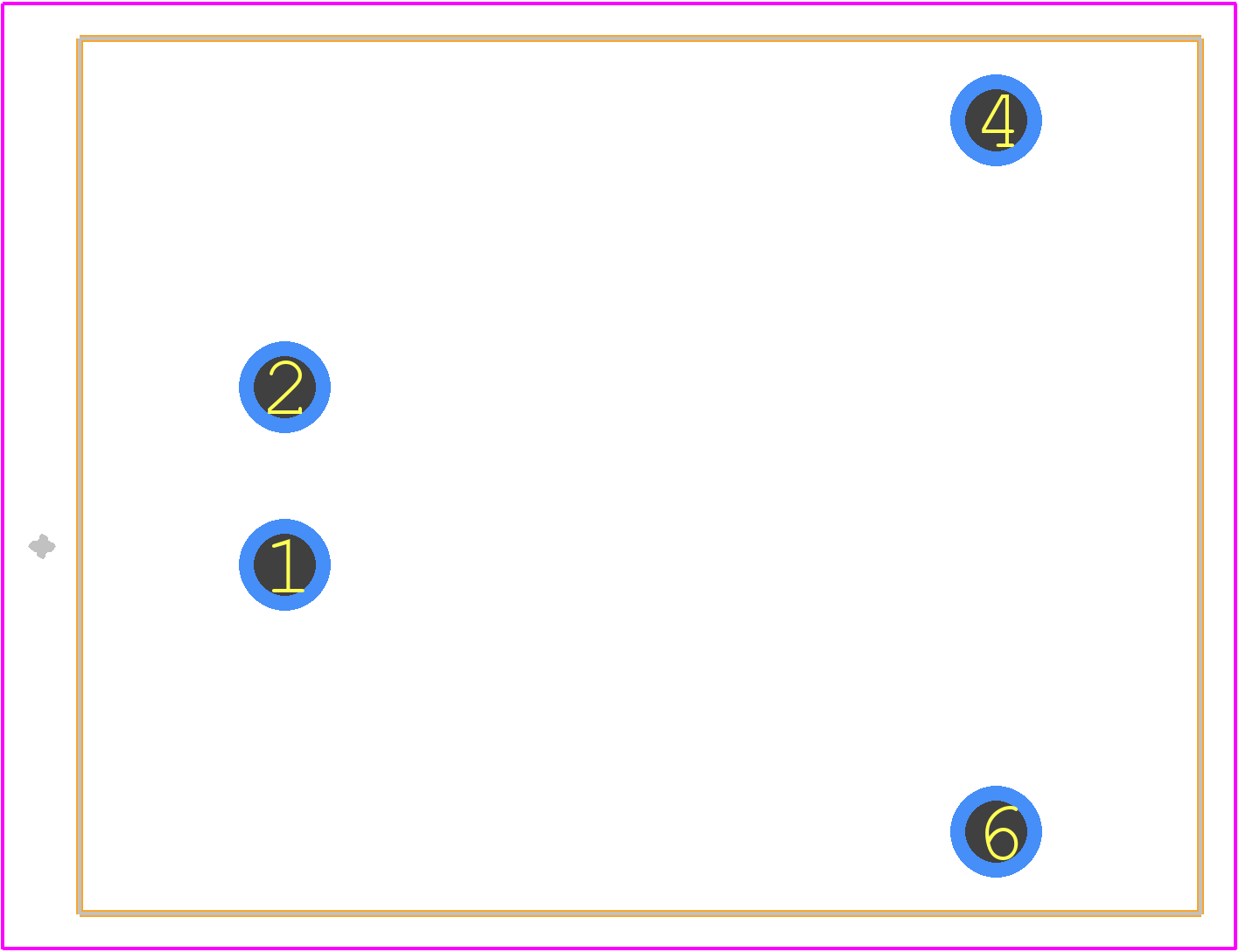

NPH10S2403IC - Murata Electronics PCB footprint - Other - Other - NPH10S2403IC-1
click to zoom
3D Models
NPH10S2403IC - Murata Electronics - 3D model - Other - NPH10S2403IC-1
click to zoom

NPH10S2403IC Details

  • Manufacturer Part Number:

    NPH10S2403IC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P4

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Output Current-Max:

    2.94 A

  • Output Voltage-Max:

    3.434 V

  • Output Voltage-Min:

    3.366 V

  • Output Voltage-Nom:

    3.4 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Finish:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    9.996 W

  • Trim/Adjustable Output:

    NO

NPH10S2403IC Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB land pattern in their 'Chip Inductors for General Use' application note (PDF). The recommended land pattern is a rectangular shape with dimensions of 1.5mm x 1.2mm, with a 0.5mm x 0.5mm pad in the center.
  • Murata recommends following the standard reflow soldering profile to minimize thermal stress. For humidity, it's essential to store the components in a dry environment (less than 60% RH) and avoid exposing them to moisture during assembly. Additionally, consider using a moisture-sensitive device (MSD) label and following IPC/JEDEC J-STD-033 guidelines.
  • Although the datasheet doesn't specify a maximum voltage, Murata recommends not exceeding 1.5 times the rated voltage (in this case, 24V) to ensure reliable operation and prevent damage.
  • While the NPH10S2403IC is designed for general-purpose use, it's not optimized for high-frequency applications. For frequencies above 100 MHz, consider using Murata's high-frequency inductors, such as the LQP series, which are specifically designed for high-frequency circuits.
  • Murata provides EMI-related information in their 'Chip Inductors for General Use' application note (PDF). Additionally, consider using simulation tools, such as Murata's SimSurfing or other third-party tools, to model and optimize your circuit's EMI performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPH10S2403IC Overview

Use the download button to access the NPH10S2403IC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPH10, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
