NPH15S2403IC - Murata Electronics

Description: Isolated DC/DC Converters 15W 24V-3.3V DIP DC/DC

Download NPH15S2403IC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NPH15S2403IC - Murata Electronics - PCB symbol
click to zoom

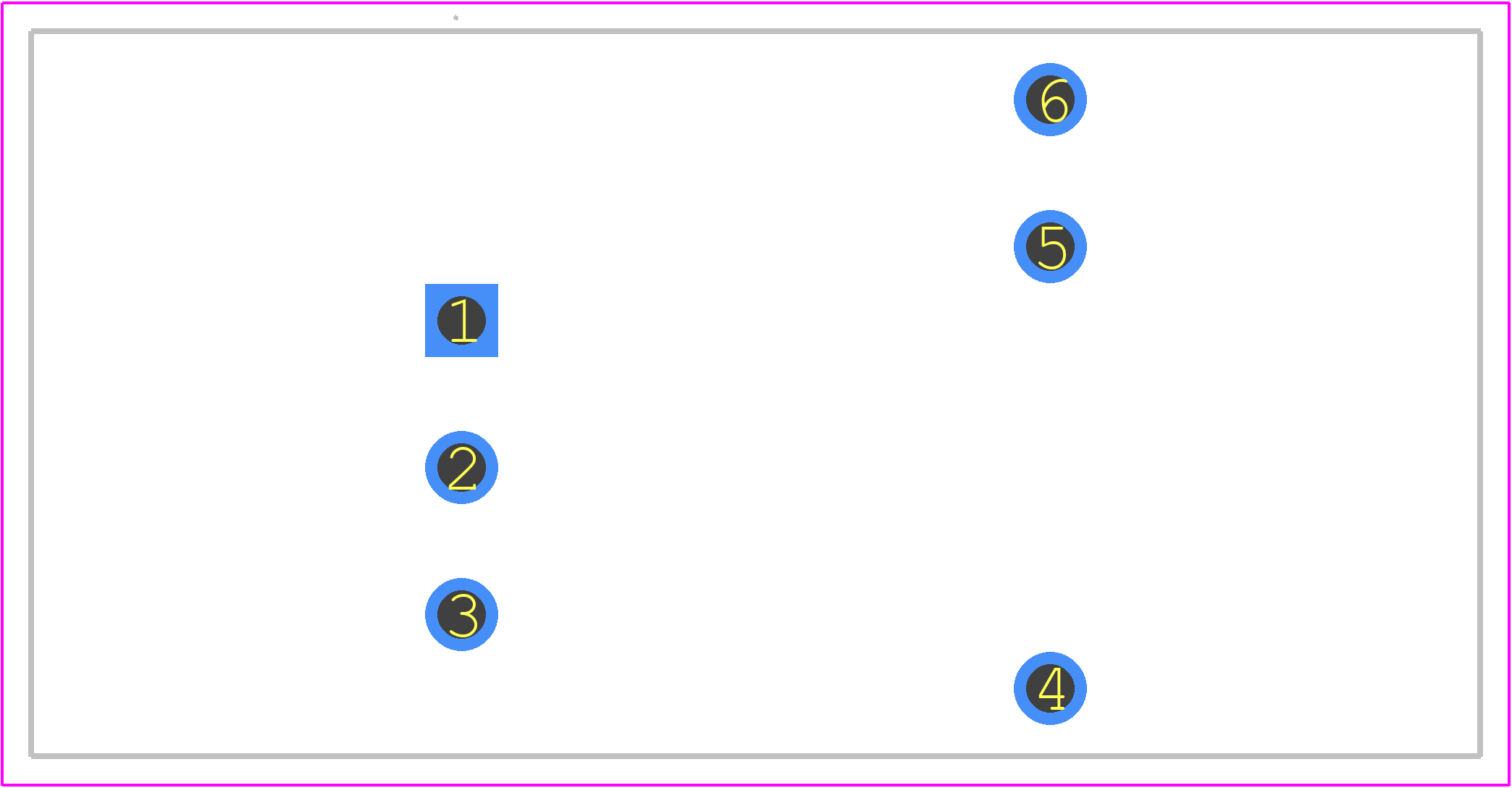

PCB Footprints
NPH15S2403IC - Murata Electronics PCB footprint - Other - Other - NPH15S2403IC-2
click to zoom
3D Models
NPH15S2403IC - Murata Electronics - 3D model - Other - NPH15S2403IC-2
click to zoom

NPH15S2403IC Details

  • Manufacturer Part Number:

    NPH15S2403IC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P4

  • JESD-609 Code:

    e4

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.4 A

  • Output Voltage-Max:

    3.485 V

  • Output Voltage-Min:

    3.315 V

  • Output Voltage-Nom:

    3.4 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

NPH15S2403IC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NPH15S2403IC can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The NPH15S2403IC has a thermal resistance of 10°C/W. To ensure reliable operation, it's recommended to provide adequate heat sinking and thermal management, such as using a thermal pad or heat sink, and ensuring good airflow around the component.
  • The NPH15S2403IC has an operating temperature range of -40°C to +125°C. However, it's recommended to derate the component's performance at temperatures above 85°C to ensure reliable operation.
  • To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the Murata Soldering Guidelines document. Additionally, use a solder with a melting point below 220°C to prevent damage to the component.
  • To prevent damage and ensure reliability, store the NPH15S2403IC in a dry, cool place, away from direct sunlight and moisture. Handle the component by the body, avoiding touching the leads or electrical contacts. Use anti-static packaging and follow proper ESD handling procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPH15S2403IC Overview

Use the download button to access the NPH15S2403IC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPH15, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
