NPH15S2405EIC - Murata Electronics

Description: Murata Power Solutions 15W Isolated DC-DC Converter, Vin 18 → 36 V dc, Vout 5.1V dc, I/O isolation 1.5kV dc

Download NPH15S2405EIC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

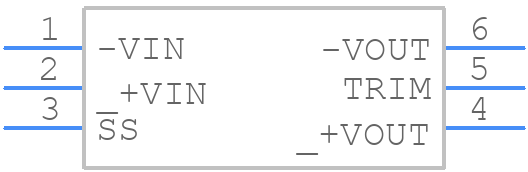

Symbol
NPH15S2405EIC - Murata Electronics - PCB symbol
click to zoom

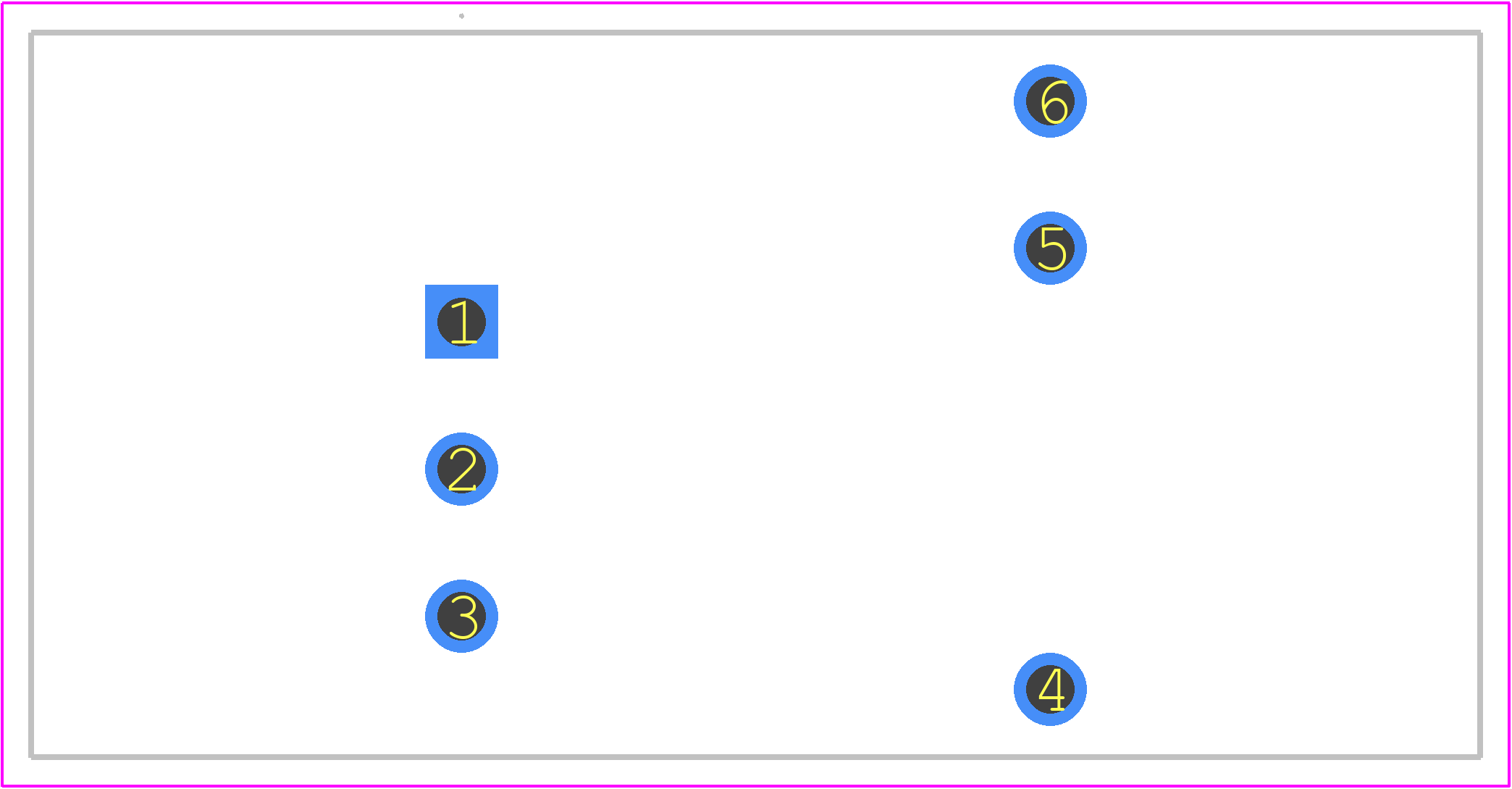

PCB Footprints
NPH15S2405EIC - Murata Electronics PCB footprint - Other - Other - NPH15S2405EIC-3
click to zoom
3D Models
NPH15S2405EIC - Murata Electronics - 3D model - Other - NPH15S2405EIC-3
click to zoom

NPH15S2405EIC Details

  • Manufacturer Part Number:

    NPH15S2405EIC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P6

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.61 V

  • Output Voltage-Min:

    4.59 V

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

NPH15S2405EIC Frequently Asked Questions (FAQs)

  • The recommended land pattern for the NPH15S2405EIC can be found in the Murata Land Pattern Recommendation document, which provides guidelines for PCB layout and footprint design.
  • The NPH15S2405EIC has a thermal resistance of 10°C/W. To handle thermal considerations, ensure good airflow around the component, use a heat sink if necessary, and follow proper PCB thermal design guidelines.
  • The maximum operating temperature range for the NPH15S2405EIC is -40°C to 125°C, as specified in the datasheet.
  • The NPH15S2405EIC is designed to withstand vibrations up to 10G, but it's recommended to consult with Murata's application engineers to ensure the component meets the specific vibration requirements of your application.
  • To ensure the NPH15S2405EIC meets your application's EMI requirements, follow proper PCB design guidelines, use shielding if necessary, and consult with Murata's application engineers for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPH15S2405EIC Overview

Use the download button to access the NPH15S2405EIC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPH15, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
