NPH15S4805EIC - Murata Electronics

Description: Isolated DC/DC Converters 15W 48V TO 5.1V ADJ Single Output

Download NPH15S4805EIC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

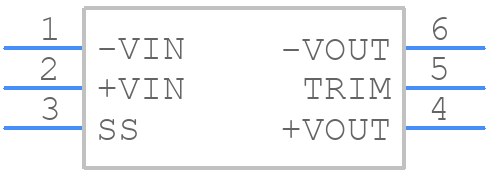

NPH15S4805EIC - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

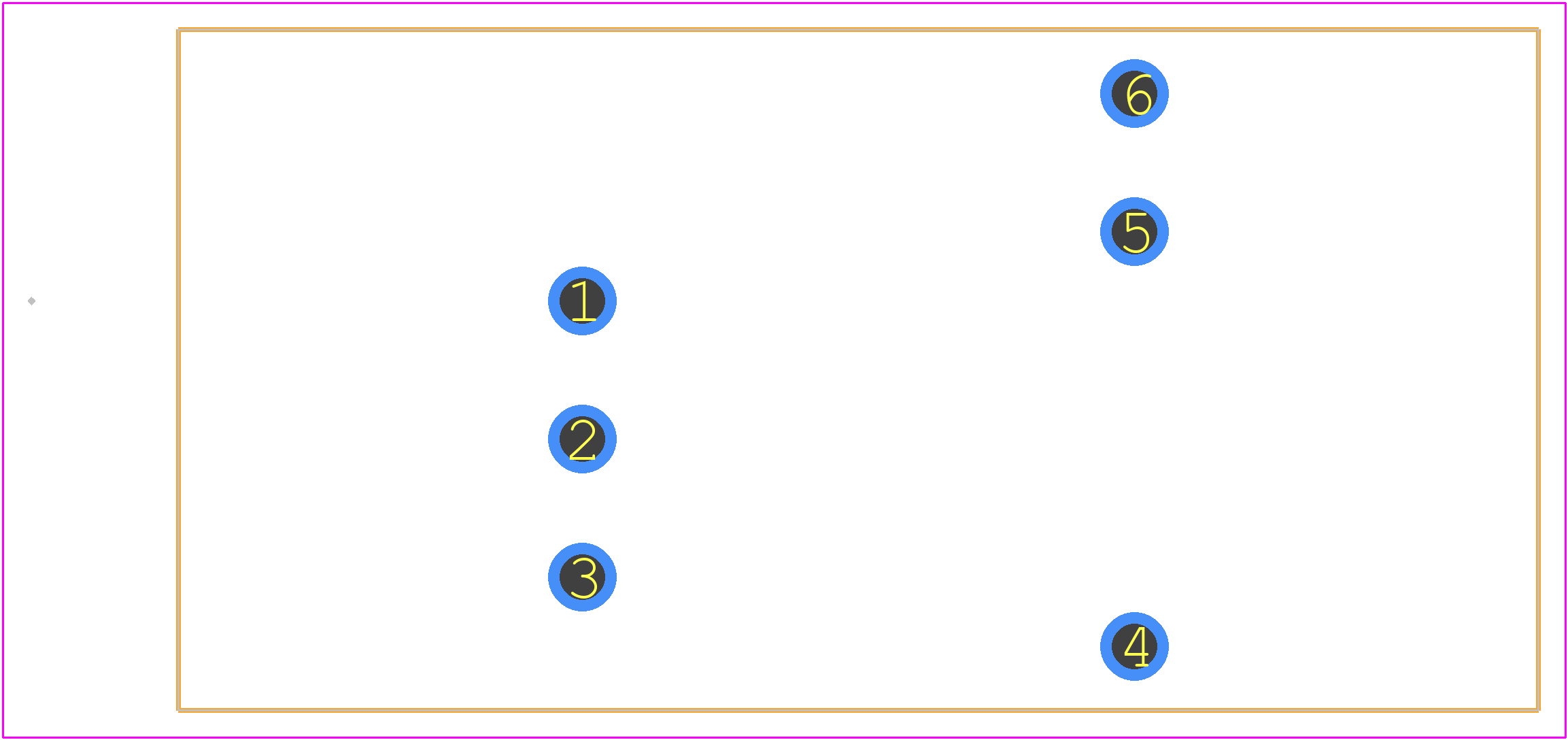

NPH15S4805EIC - Murata Electronics PCB footprint - Other - Other - NPH15S4805EIC-2
click to zoom
3D Models
NPH15S4805EIC - Murata Electronics - 3D model - Other - NPH15S4805EIC-2
click to zoom

NPH15S4805EIC Details

  • Manufacturer Part Number:

    NPH15S4805EIC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-P6

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.61 V

  • Output Voltage-Min:

    4.59 V

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,0.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Gold Flash (Au) - with Nickel (Ni) barrier

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

NPH15S4805EIC Frequently Asked Questions (FAQs)

  • Murata provides a recommended PCB land pattern in their 'Chip Inductors for General Use' application note (PDF). The recommended land pattern for the NPH15S4805EIC is a rectangular pad with dimensions of 1.5 mm x 1.2 mm, with a 0.5 mm gap between pads.
  • According to Murata's datasheet, the NPH15S4805EIC has a temperature derating curve. To handle thermal derating, ensure that the operating temperature is within the specified range (−40°C to +125°C). For temperatures above 85°C, reduce the maximum current rating according to the derating curve to prevent overheating and ensure reliable operation.
  • Although not explicitly stated in the datasheet, the self-resonant frequency (SRF) of the NPH15S4805EIC can be estimated using Murata's inductor simulation tool or by consulting with a Murata representative. The SRF is typically in the range of 100 MHz to 500 MHz for this type of inductor.
  • While the NPH15S4805EIC is designed for general-purpose use, it may not be suitable for high-frequency applications due to its relatively low self-resonant frequency. For high-frequency applications, consider using a specialized high-frequency inductor from Murata or other manufacturers, which are designed to operate at higher frequencies with minimal losses.
  • To ensure the reliability of the NPH15S4805EIC in a high-reliability application, follow Murata's recommended storage and handling procedures, and ensure that the component is operated within its specified ratings. Additionally, consider using a qualified and reputable distributor or purchasing directly from Murata to minimize the risk of counterfeit components.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPH15S4805EIC Overview

Use the download button to access the NPH15S4805EIC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPH15, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
