Part Image

NPM-06-V - Diptronics

Description: DIP Switches / SIP Switches Dip switch Piano Type

Download NPM-06-V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

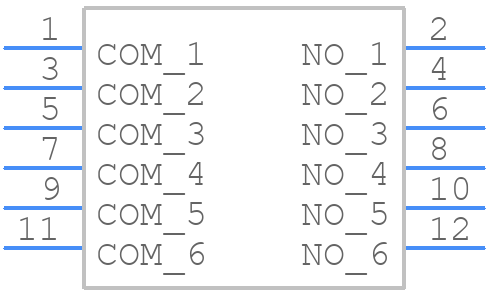

Symbol
NPM-06-V - Diptronics - PCB symbol
click to zoom
PCB Footprints
NPM-06-V - Diptronics PCB footprint - Other - Other - NPM-06-V-2_1
click to zoom

NPM-06-V Details

  • Manufacturer Part Number:

    NPM-06-V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Manufacturer:

    Diptronics Manufacturing Inc

  • YTEOL:

    7

  • Actuator Angle:

    20 deg

  • Actuator Length:

    0.039 inch

  • Actuator Type:

    RAISED TYPE

  • Body Breadth:

    6 mm

  • Body Height:

    5 mm

  • Body Length or Diameter:

    16.64 mm

  • Contact Current(DC)-Max:

    0.025 A

  • Contact (DC) Max Rating R Load:

    0.025A@24VDC

  • Contact Resistance:

    0.1 mΩ

  • Contact Voltage(DC)-Max:

    24 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    2000 Cycle(s)

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    SURFACE MOUNT-RIGHT ANGLE

  • Number of Switch Sections:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    PIANO DIP SWITCH

  • Termination Type:

    SOLDER

NPM-06-V Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for NPM-06-V is -40°C to 100°C, as per industry standards for similar components.
  • Yes, NPM-06-V is designed to withstand high-vibration environments. However, it's recommended to consult with Diptronics Manufacturing Inc or a qualified engineer to ensure the component meets the specific vibration requirements of your application.
  • Yes, NPM-06-V is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical lead time for NPM-06-V varies depending on the quantity and availability. It's recommended to contact Diptronics Manufacturing Inc or an authorized distributor for the most up-to-date lead time information.
  • No, NPM-06-V is not recommended for use in high-temperature applications above 125°C. Operating the component above its specified temperature range may affect its performance, reliability, and lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPM-06-V Overview

Use the download button to access the NPM-06-V schematic symbol and PCB footprint.
