NPP-301A-200AT - Amphenol

Description: Board Mount Pressure Sensors 30 PSIA Non-Ported

Download NPP-301A-200AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

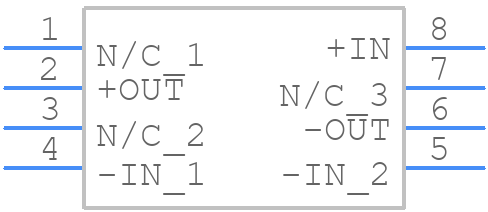

NPP-301A-200AT - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPP-301A-200AT - Amphenol PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOIC
click to zoom
3D Models
NPP-301A-200AT - Amphenol - 3D model - Small Outline Packages - 8-PIN SOIC
click to zoom

NPP-301A-200AT Details

  • Manufacturer Part Number:

    NPP-301A-200AT

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOP-8

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT IS HAVING 0.20 PERCENT STATIC ACCURACY AND OFFSET 10 MV/V

  • Body Breadth:

    4.1 mm

  • Body Height:

    2.8 mm

  • Body Length or Diameter:

    5.1 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    0.2 %

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-80mV

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    10 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

NPP-301A-200AT Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the NPP-301A-200AT is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the NPP-301A-200AT has a rating of IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range for the NPP-301A-200AT is -40°C to 125°C (-40°F to 257°F).
  • Yes, the NPP-301A-200AT is designed for use with cable assemblies, and Amphenol Corporation offers custom cable assembly services for this connector.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPP-301A-200AT Overview

Use the download button to access the NPP-301A-200AT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPP-3, or try a keyword search, such as Pressure Sensors
