NPPC202KFMS-RC - Sullins

Description: CONN HDR 40POS 0.1 GOLD SMD

Download NPPC202KFMS-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NPPC202KFMS-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

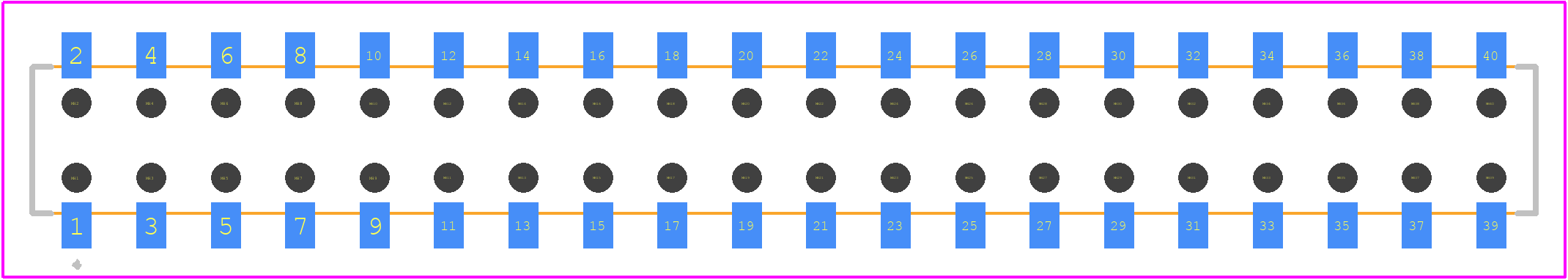

NPPC202KFMS-RC - Sullins PCB footprint - Other - Other - NPPC202KFMS-RC-2
click to zoom
3D Models
NPPC202KFMS-RC - Sullins - 3D model - Other - NPPC202KFMS-RC-2
click to zoom

NPPC202KFMS-RC Details

  • Manufacturer Part Number:

    NPPC202KFMS-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Length:

    2.02 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

NPPC202KFMS-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the NPPC202KFMS-RC connector is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the NPPC202KFMS-RC connector is designed to withstand high-vibration environments and is suitable for applications such as industrial control systems, transportation systems, and more.
  • Yes, the NPPC202KFMS-RC connector is designed to operate in harsh environments, including temperatures ranging from -40°C to 105°C, and is resistant to moisture, dust, and other environmental factors.
  • The NPPC202KFMS-RC connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the NPPC202KFMS-RC connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in global markets.
