NPPC252KFMS-RC - Sullins

Description: 50 Position Header Connector 0.100" (2.54mm) Surface Mount Gold

Download NPPC252KFMS-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NPPC252KFMS-RC - Sullins - PCB symbol
click to zoom

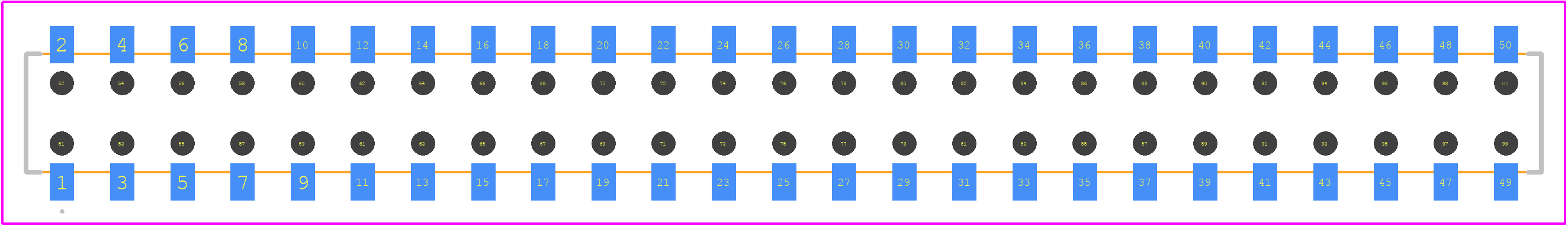

PCB Footprints
NPPC252KFMS-RC - Sullins PCB footprint - Other - Other - NPPC252KFMS-RC-1
click to zoom
3D Models
NPPC252KFMS-RC - Sullins - 3D model - Other - NPPC252KFMS-RC-1
click to zoom

NPPC252KFMS-RC Details

  • Manufacturer Part Number:

    NPPC252KFMS-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.197 inch

  • Body Length:

    2.52 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYAMIDE

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

NPPC252KFMS-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the NPPC252KFMS-RC is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in demanding applications.
  • The NPPC252KFMS-RC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The NPPC252KFMS-RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies 24-20 AWG wire sizes, the connector can accommodate other wire sizes with proper termination and strain relief. However, it's essential to consult with Sullins Connector Solutions or a qualified engineer to ensure compatibility and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPPC252KFMS-RC Overview

Use the download button to access the NPPC252KFMS-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPPC2, or try a keyword search, such as Headers and Edge Type Connectors
