NPPN172AFCN-RC - Sullins

Description: 34 Position Header Connector 0.079" (2.00mm) Through Hole Gold

Download NPPN172AFCN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NPPN172AFCN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

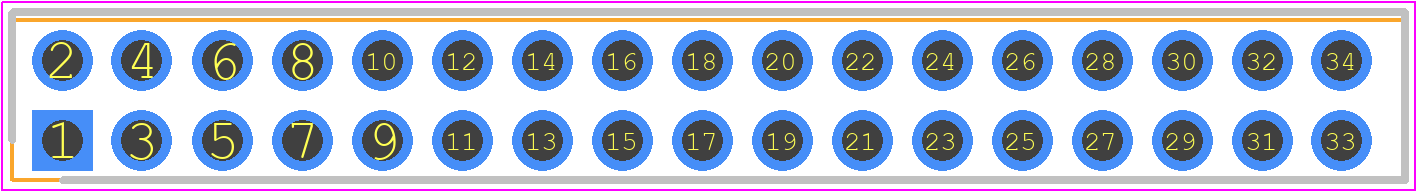

NPPN172AFCN-RC - Sullins PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - NPPN172AFCN-RC
click to zoom
3D Models
NPPN172AFCN-RC - Sullins - 3D model - Header, Receptacle - Straight PTH Box - NPPN172AFCN-RC
click to zoom

NPPN172AFCN-RC Details

  • Manufacturer Part Number:

    NPPN172AFCN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

NPPN172AFCN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper connection and prevent damage to the connector.
  • Yes, the NPPN172AFCN-RC connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and screw locking to maintain the connection's integrity.
  • The operating temperature range for the NPPN172AFCN-RC connector is -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the NPPN172AFCN-RC connector is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure a reliable connection.
  • The recommended mating cycle for the NPPN172AFCN-RC connector is 500-1000 cycles. Exceeding this cycle count may affect the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPPN172AFCN-RC Overview

Use the download button to access the NPPN172AFCN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPPN1, or try a keyword search, such as Headers and Edge Type Connectors
