NPT1004D - MACOM

Description: Optimized for Pulsed, WiMAX, W-CDMA, LTE, & other light thermal load applications from DC - 4 GHz • 2.5 GHz Performance • 45 W P3dB CW Power • 13.5 dB Small Signal Gain • 55% Efficiency @ P3dB • 100% RF Tested • Thermally-Enhanced Surface Mount SOIC Package • High Reliability Gold Metallization Process • Subject to EAR99 Export Control • RoHS* Compliant

Download NPT1004D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

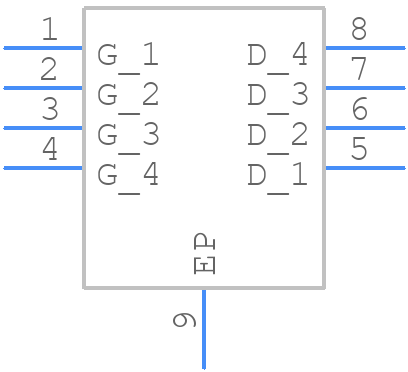

NPT1004D - MACOM - PCB symbol
