NPTB00004A - MACOM

Description: RF JFET Transistors DC-6.0GHz 5W Gain 16dB GaN HEMT

Download NPTB00004A Model

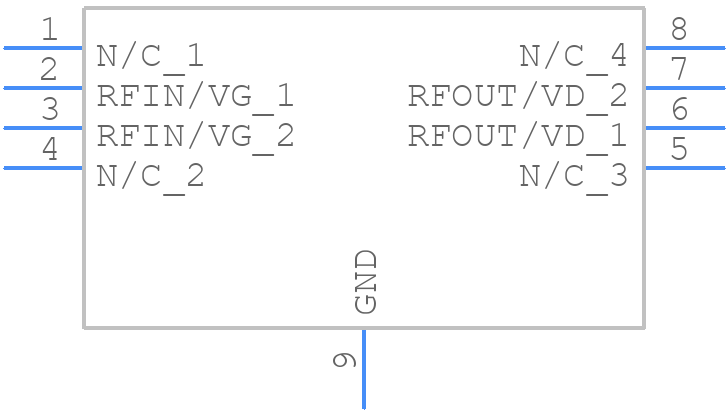

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NPTB00004A - MACOM PCB footprint - Small Outline Packages - Small Outline Packages - NPTB00004A
click to zoom
3D Models
NPTB00004A - MACOM  - 3D model - Small Outline Packages - NPTB00004A
click to zoom

NPTB00004A Details

  • Manufacturer Part Number:

    NPTB00004A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    MACOM

  • YTEOL:

    0

  • Case Connection:

    SOURCE

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    100 V

  • FET Technology:

    HIGH ELECTRON MOBILITY

  • Highest Frequency Band:

    C BAND

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Gain-Min (Gp):

    12.8 dB

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    GALLIUM NITRIDE

NPTB00004A Frequently Asked Questions (FAQs)

  • MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
  • The NPTB00004A requires a bias voltage of 5V and a bias current of 100mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
  • The NPTB00004A is rated for operation up to 85°C, but it's recommended to operate it at a maximum temperature of 70°C to ensure optimal performance and reliability.
  • While the NPTB00004A is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may affect the device's performance and require additional circuitry.
  • MACOM recommends using a human body model (HBM) ESD protection circuit with a minimum of 2kV rating to protect the NPTB00004A from electrostatic discharge.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPTB00004A Overview

Use the download button to access the NPTB00004A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPTB0, or try a keyword search, such as RF Power Field-Effect Transistors
