NR1600AC100AE2S - Nisshinbo

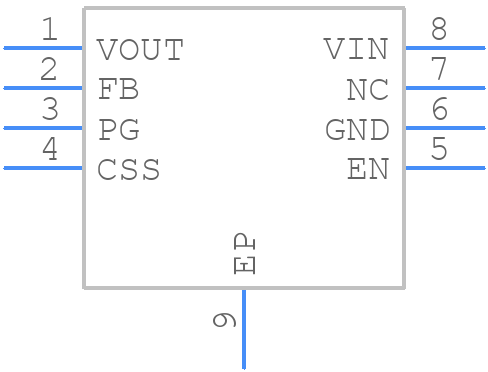

NR1600AC100AE2S Details

• Manufacturer Part Number:

  NR1600AC100AE2S

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HSOP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  6.2

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.81 V

• Dropout Voltage1-Nom:

  0.56 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  1.4 V

• JESD-30 Code:

  R-PDSO-G8

• Length:

  5.2 mm

• Load Regulation-Max:

  0.01%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  1.03 V

• Output Voltage1-Min:

  0.97 V

• Output Voltage1-Nom:

  1 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLSOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

• Packing Method:

  TR, 7 INCH

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.6 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  3%

• Width:

  4.4 mm
