The recommended land pattern for NR1640DC330AE1Q is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
NR1640DC330AE1Q has a high power dissipation rating, so thermal management is crucial. It is recommended to use a thermal pad or a heat sink with a thermal interface material (TIM) to dissipate heat. The PCB should also have thermal vias to help dissipate heat.
The maximum operating temperature range for NR1640DC330AE1Q is -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for an extended period.
NR1640DC330AE1Q is a surface-mount device, and its reliability may be affected in high-vibration environments. It is recommended to use a vibration-resistant mounting method, such as underfill or potting, to ensure the device's reliability in such environments.
To ensure the reliability of NR1640DC330AE1Q in a humid environment, it is recommended to use a moisture-resistant coating or conformal coating on the PCB. Additionally, the device should be stored in a dry environment before assembly, and the PCB should be baked before assembly to remove any moisture.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NR1640DC330AE1Q Overview

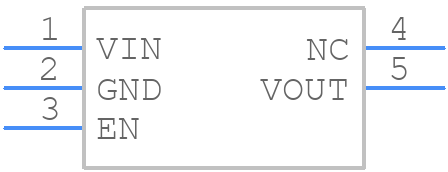

Use the download button to access the NR1640DC330AE1Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NR164,
or try a keyword search, such as Linear Regulator ICs
