nRF21540-QDAA-R - Nordic Semiconductor

Description: RF Front End Range Extender FEM +13 dB RX gain

Download nRF21540-QDAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

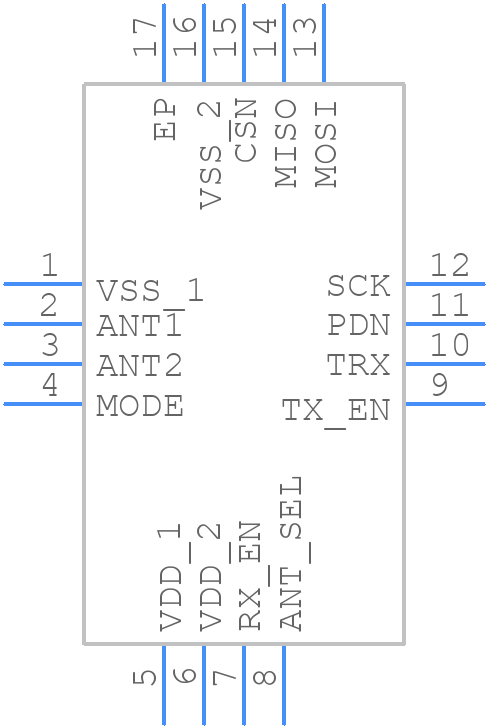

Symbol
nRF21540-QDAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF21540-QDAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NRF2402G
click to zoom
3D Models
nRF21540-QDAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - NRF2402G
click to zoom

nRF21540-QDAA-R Details

  • Manufacturer Part Number:

    NRF21540-QDAA-R

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-16

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.16SQ

  • Power Supplies:

    1.8/3.3 V

  • RF/Microwave Device Type:

    RF TRANSCEIVER

  • Surface Mount:

    YES

nRF21540-QDAA-R Frequently Asked Questions (FAQs)

  • The maximum transmit power of the NRF21540-QDAA-R is +8 dBm.
  • The NRF21540-QDAA-R operates in the 2.4 GHz frequency band, with a range of 2392 MHz to 2507 MHz.
  • The current consumption of the NRF21540-QDAA-R in transmit mode is typically around 5.4 mA at +0 dBm output power.
  • Yes, the NRF21540-QDAA-R supports Bluetooth 5.0, as well as Bluetooth 4.2 and earlier versions.
  • The range of the NRF21540-QDAA-R depends on the environment and the antenna used, but it can reach up to 100 meters (330 feet) in ideal conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

nRF21540-QDAA-R Overview

Use the download button to access the nRF21540-QDAA-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nRF21, or try a keyword search, such as Other RF/Microwave Devices
