NRF2402G - Nordic Semiconductor

Description: Nordic Semiconductor NRF2402G 1.9 → 3.6V WLAN Module 3-Wire

Download NRF2402G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

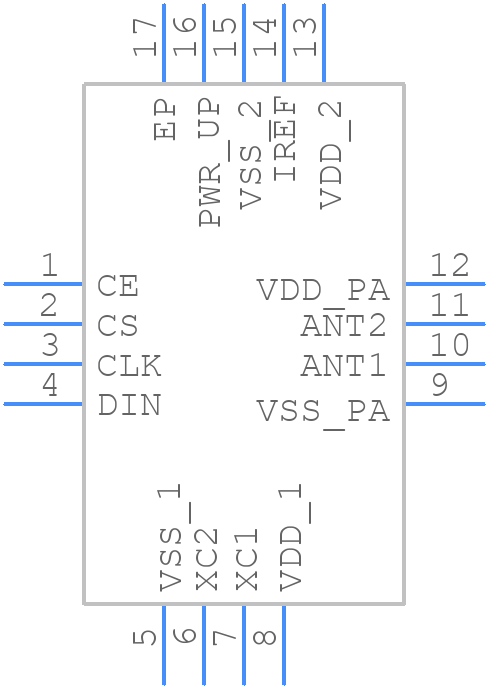

NRF2402G - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF2402G - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NRF2402G
click to zoom
3D Models
NRF2402G - Nordic Semiconductor - 3D model - Quad Flat No-Lead - NRF2402G
click to zoom

NRF2402G Details

  • Manufacturer Part Number:

    NRF2402G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Manufacturer:

    Nordic Semiconductor

  • YTEOL:

    0

  • Construction:

    Component:CRY OSC;FRQ SYN;MOD;PA

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    RF TRANSMITTER

  • Surface Mount:

    YES

NRF2402G Frequently Asked Questions (FAQs)

  • The maximum transmission power of NRF2402G is +20 dBm (100 mW) in the 2.4 GHz frequency band.
  • To implement a reliable wireless communication system using NRF2402G, use a combination of error correction mechanisms such as CRC, checksum, and retransmission protocols like ARQ (Automatic Repeat Request).
  • The maximum data transfer rate of NRF2402G is 2 Mbps in the 2.4 GHz frequency band.
  • To configure the NRF2402G for optimal range and performance, adjust the transmission power, data rate, and modulation scheme according to the specific application requirements. Additionally, optimize the antenna design and placement for maximum gain.
  • Yes, NRF2402G can be used for mesh networking applications. However, it requires additional software and firmware development to implement mesh networking protocols such as IEEE 802.15.4.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRF2402G Overview

Use the download button to access the NRF2402G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRF24, or try a keyword search, such as Other RF/Microwave Devices

About Nordic Semiconductor

Nordic Semiconductor is a fabless semiconductor company focused on ultra-low-power wireless solutions for IoT applications. Its portfolio includes highly integrated SoCs and SiPs supporting Bluetooth® Low Energy (BLE), Thread, Zigbee, Wi-Fi, DECT NR+, and cellular IoT standards such as LTE-M and NB-IoT. Nordic devices are designed for energy-efficient, battery-powered applications across consumer, industrial, healthcare, and smart home markets.
