NRF52810-QFAA-R7 - Nordic Semiconductor

Description: NORDIC SEMICONDUCTOR - NRF52810-QFAA-R7 - BLUETOOTH, SOC, 2MBPS, 2.5GHZ, QFN-48

Download NRF52810-QFAA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

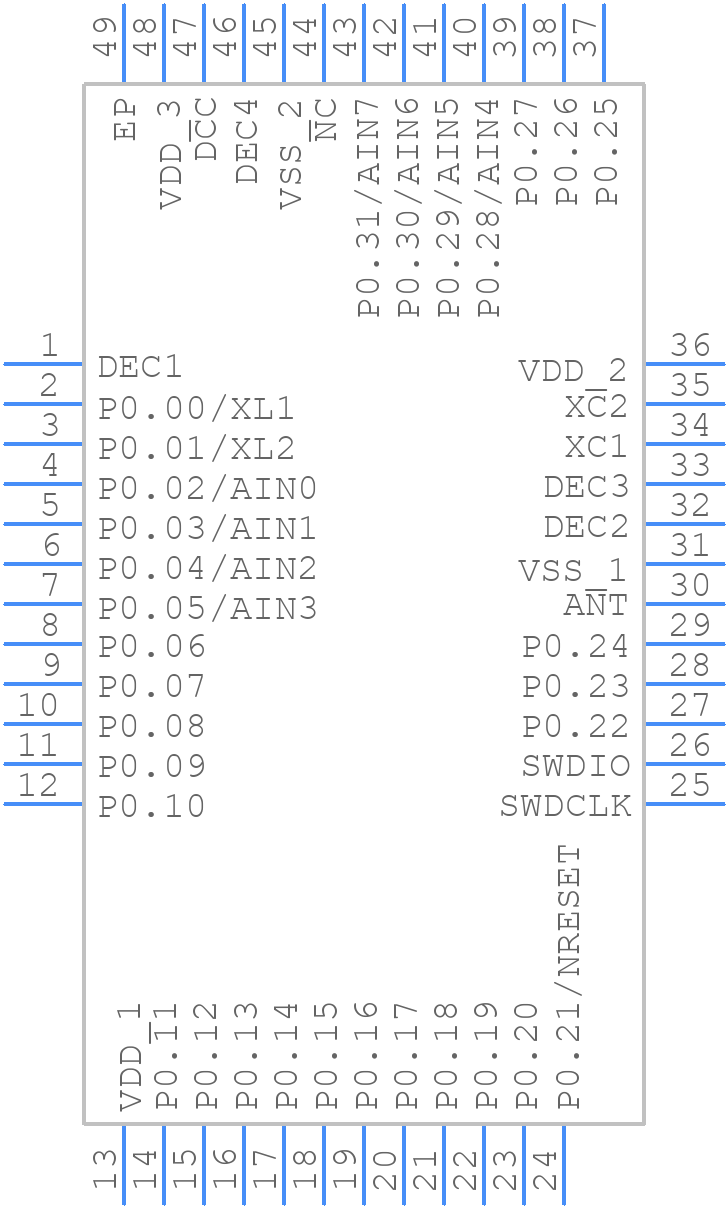

NRF52810-QFAA-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF52810-QFAA-R7 - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 6x6
click to zoom
3D Models
NRF52810-QFAA-R7 - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN48 6x6
click to zoom

NRF52810-QFAA-R7 Details

  • Manufacturer Part Number:

    NRF52810-QFAA-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

NRF52810-QFAA-R7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52810-QFAA-R7 is -40°C to 85°C.
  • The NFC tag functionality on the NRF52810-QFAA-R7 can be configured using the Nordic UART (NUART) interface. Refer to the nRF52810 Product Specification and the nRF5 SDK documentation for more information.
  • The maximum current consumption of the NRF52810-QFAA-R7 is approximately 5.4mA in TX mode and 4.6mA in RX mode, depending on the operating frequency and other factors.
  • Secure boot and firmware updates on the NRF52810-QFAA-R7 can be implemented using the Nordic Secure Firmware Update (SFU) mechanism. Refer to the nRF52810 Product Specification and the nRF5 SDK documentation for more information.
  • The maximum data transfer rate of the NRF52810-QFAA-R7 is 2Mbps for Bluetooth Low Energy (BLE) and 1Mbps for NFC.
