nRF52811-QCAA-R - Nordic Semiconductor

Description: RF System on a Chip - SoC Bluetooth 5.1 Multiprotocal

Download nRF52811-QCAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

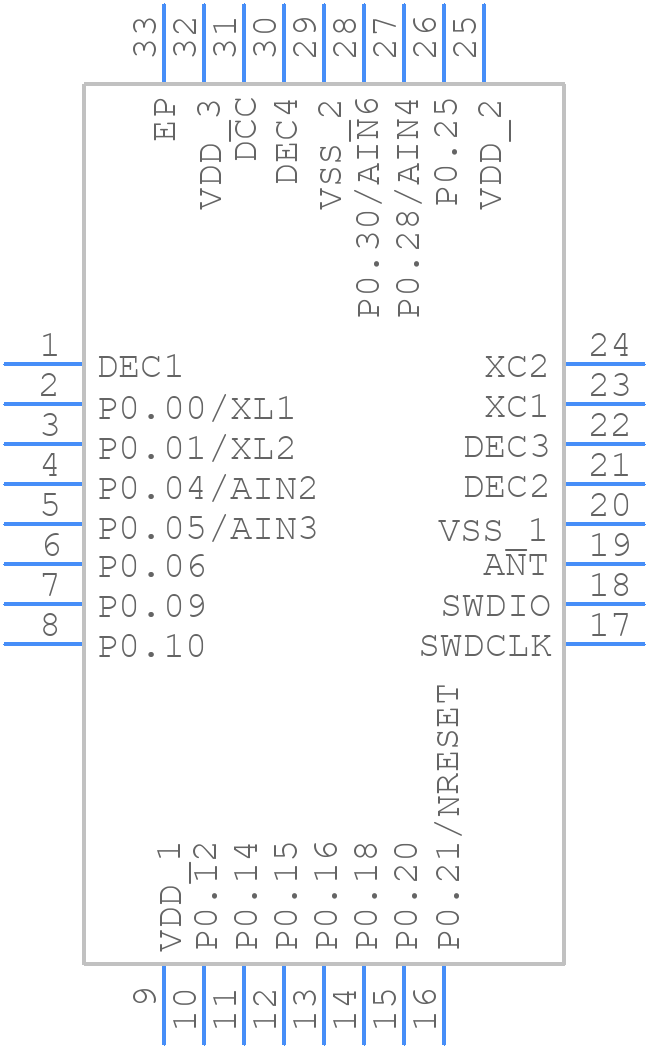

nRF52811-QCAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52811-QCAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - nRF52811-QCAA-R
click to zoom
3D Models
nRF52811-QCAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - nRF52811-QCAA-R
click to zoom

nRF52811-QCAA-R Details

  • Manufacturer Part Number:

    NRF52811-QCAA-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-32

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52811-QCAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52811-QCAA-R is -40°C to 85°C.
  • To configure the NRF52811-QCAA-R for low power consumption, use the System ON (SYS_ON) and System OFF (SYS_OFF) modes, and adjust the CPU frequency and voltage scaling. Additionally, use the Power Management Unit (PMU) to control the power modes of the peripherals.
  • The maximum data transfer rate for the NRF52811-QCAA-R's UART is 4 Mbps.
  • Yes, the NRF52811-QCAA-R is compatible with Bluetooth 5.0 and can be used for Bluetooth 5.0 applications.
  • Implement secure boot and firmware updates on the NRF52811-QCAA-R by using the Arm TrustZone technology and the Nordic Semiconductor's Secure Boot and Firmware Update (SBU) protocol.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

nRF52811-QCAA-R Overview

Use the download button to access the nRF52811-QCAA-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
