nRF52811-QFAA-R - Nordic Semiconductor

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.3, Thread 2.4GHz 48-VFQFN Exposed Pad

Download nRF52811-QFAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

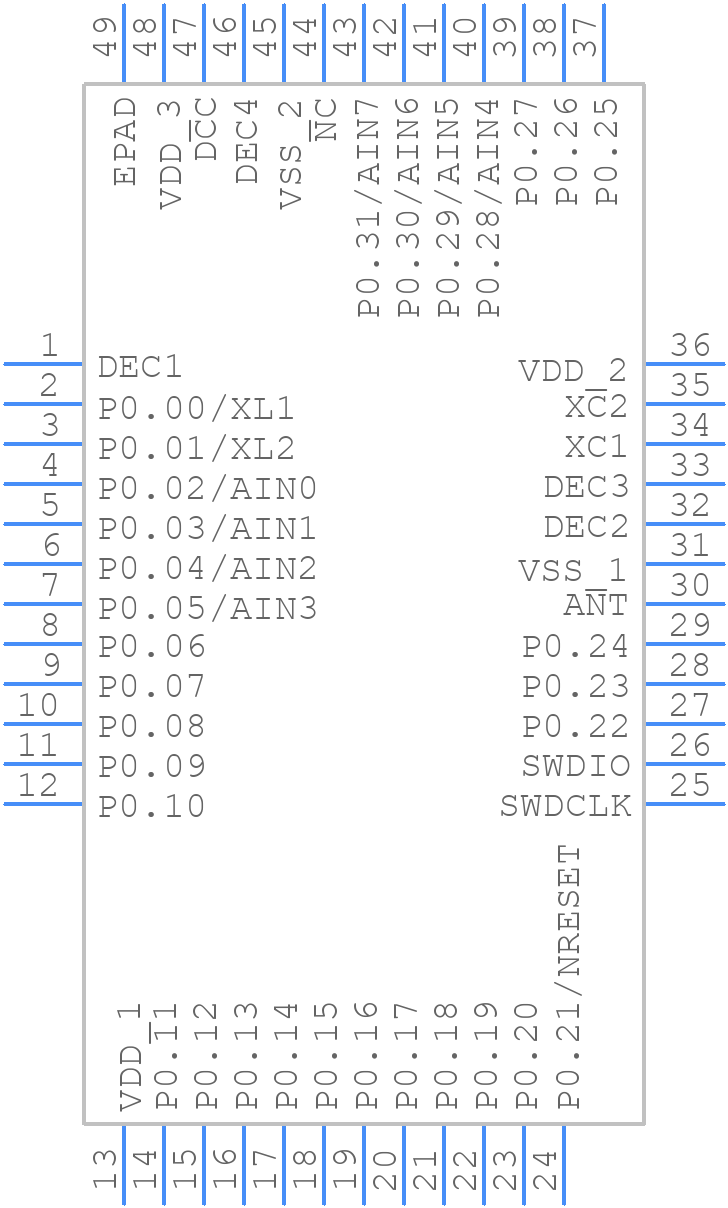

nRF52811-QFAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52811-QFAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-48
click to zoom
3D Models
nRF52811-QFAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN-48
click to zoom

nRF52811-QFAA-R Details

  • Manufacturer Part Number:

    NRF52811-QFAA-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52811-QFAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52811-QFAA-R is -40°C to 85°C.
  • The NFC tag functionality on the NRF52811-QFAA-R can be configured using the Nordic UART (NUART) interface. Refer to the Nordic UART documentation for more information.
  • The maximum current consumption of the NRF52811-QFAA-R is approximately 5.4mA in TX mode and 4.6mA in RX mode, depending on the operating frequency and other factors.
  • Yes, the NRF52811-QFAA-R is compatible with Bluetooth 5.0 and can be used for Bluetooth 5.0 applications.
  • Secure boot on the NRF52811-QFAA-R can be implemented using the Nordic Secure Bootloader (NSB) and the Nordic UART (NUART) interface. Refer to the Nordic documentation for more information.
