NRF52832-CIAA-R - Nordic Semiconductor

Description: IC RF TxRx + MCU General ISM > 1GHZ ANT, Bluetooth v5.0 2.4GHz 50-XFBGA, WLCSP

Download NRF52832-CIAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

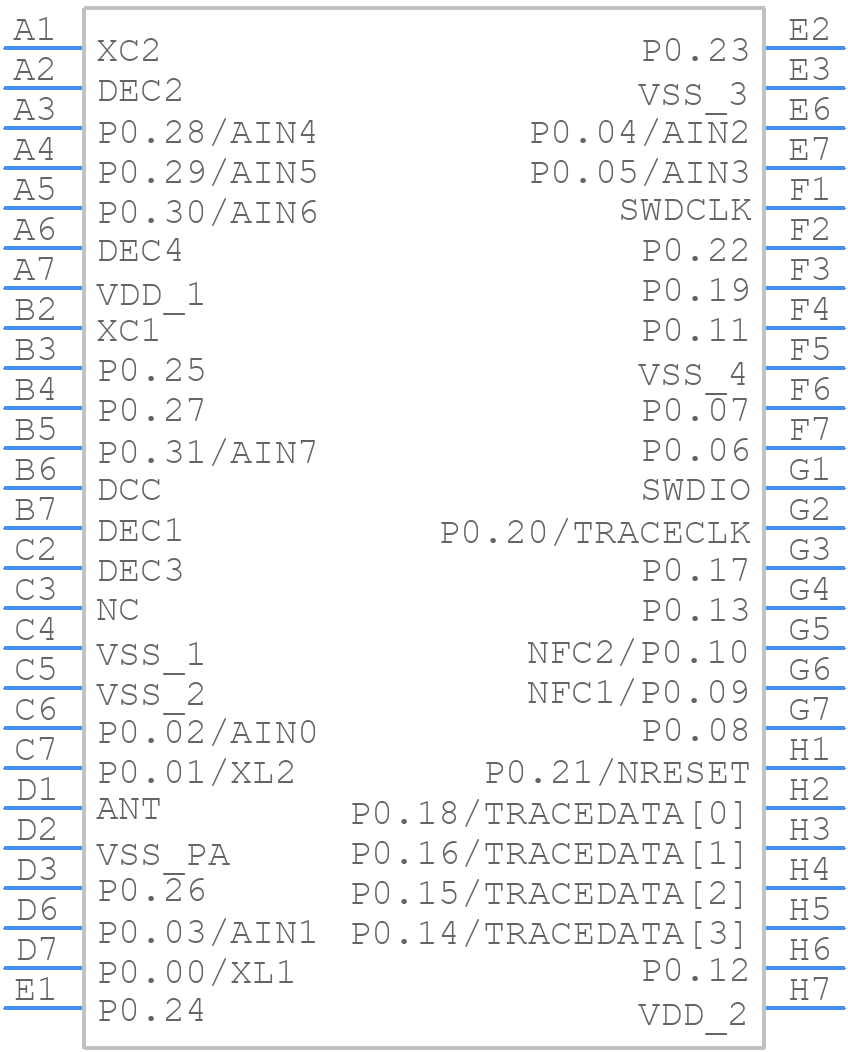

NRF52832-CIAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF52832-CIAA-R - Nordic Semiconductor PCB footprint - BGA - BGA - WLCSP package
click to zoom
3D Models
NRF52832-CIAA-R - Nordic Semiconductor - 3D model - BGA - WLCSP package
click to zoom

NRF52832-CIAA-R Details

  • Manufacturer Part Number:

    NRF52832-CIAA-R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-50

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    R-PBGA-B50

  • Length:

    3.226 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    50

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA50,7X8,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.399 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.956 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

NRF52832-CIAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52832-CIAA-R is -40°C to 85°C.
  • The NFC tag functionality on the NRF52832-CIAA-R can be configured using the Nordic UART (NUART) interface. You need to use the NFC library provided by Nordic Semiconductor and configure the NFC pins accordingly.
  • The maximum current consumption of the NRF52832-CIAA-R is approximately 5.4mA in TX mode and 4.6mA in RX mode, depending on the operating frequency and other factors.
  • To implement secure boot on the NRF52832-CIAA-R, you need to use the Nordic Semiconductor's Secure Bootloader and follow the guidelines provided in the Nordic Semiconductor's documentation. This involves generating a secure boot image and flashing it to the device.
  • The maximum data transfer rate of the NRF52832-CIAA-R is 2Mbps for Bluetooth Low Energy (BLE) and 1Mbps for NFC.
