nRF52832-CIAA-R7 - Nordic Semiconductor

Description: RF System on a Chip - SoC Bluetooth low energy and 2.4GHz proprietary WLCSP 7" reel

Download nRF52832-CIAA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

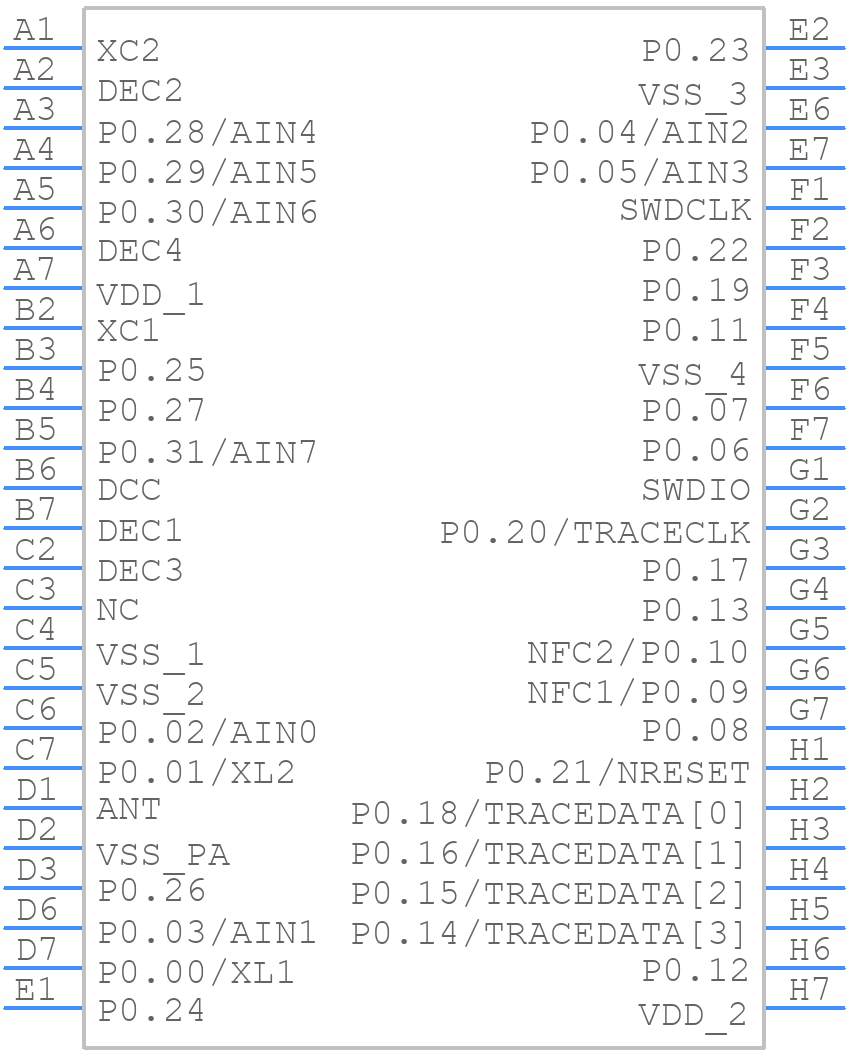

nRF52832-CIAA-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52832-CIAA-R7 - Nordic Semiconductor PCB footprint - BGA - BGA - 50 WLCSP (3.0 × 3.2)
click to zoom
3D Models
nRF52832-CIAA-R7 - Nordic Semiconductor - 3D model - BGA - 50 WLCSP (3.0 × 3.2)
click to zoom

nRF52832-CIAA-R7 Details

  • Manufacturer Part Number:

    NRF52832-CIAA-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-50

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    R-PBGA-B50

  • Length:

    3.226 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    50

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA50,7X8,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.399 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.956 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52832-CIAA-R7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52832-CIAA-R7 is -40°C to 85°C.
  • The NFC tag functionality on the NRF52832-CIAA-R7 can be configured using the Nordic UART (NUART) interface. You need to use the NRF52832's NFC peripheral and configure it as a passive NFC tag. You can refer to the Nordic Semiconductor's NFC example code for more information.
  • The maximum current consumption of the NRF52832-CIAA-R7 is approximately 5.4mA in TX mode and 4.6mA in RX mode, when operating at 3V and 1Mbps data rate.
  • To implement secure boot on the NRF52832-CIAA-R7, you need to use the Nordic Semiconductor's Secure Bootloader (SBL) and follow the guidelines provided in the Nordic Semiconductor's documentation. You need to generate a secure boot image, sign it with a private key, and then flash it to the device.
  • The maximum data transfer rate of the NRF52832-CIAA-R7's UART is 1Mbps.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

nRF52832-CIAA-R7 Overview

Use the download button to access the nRF52832-CIAA-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
