nRF52832-QFAA-R - Nordic Semiconductor

Description: RF System on a Chip - SoC BLE ANT/ANT+ 2.4GHz SOC

Download nRF52832-QFAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

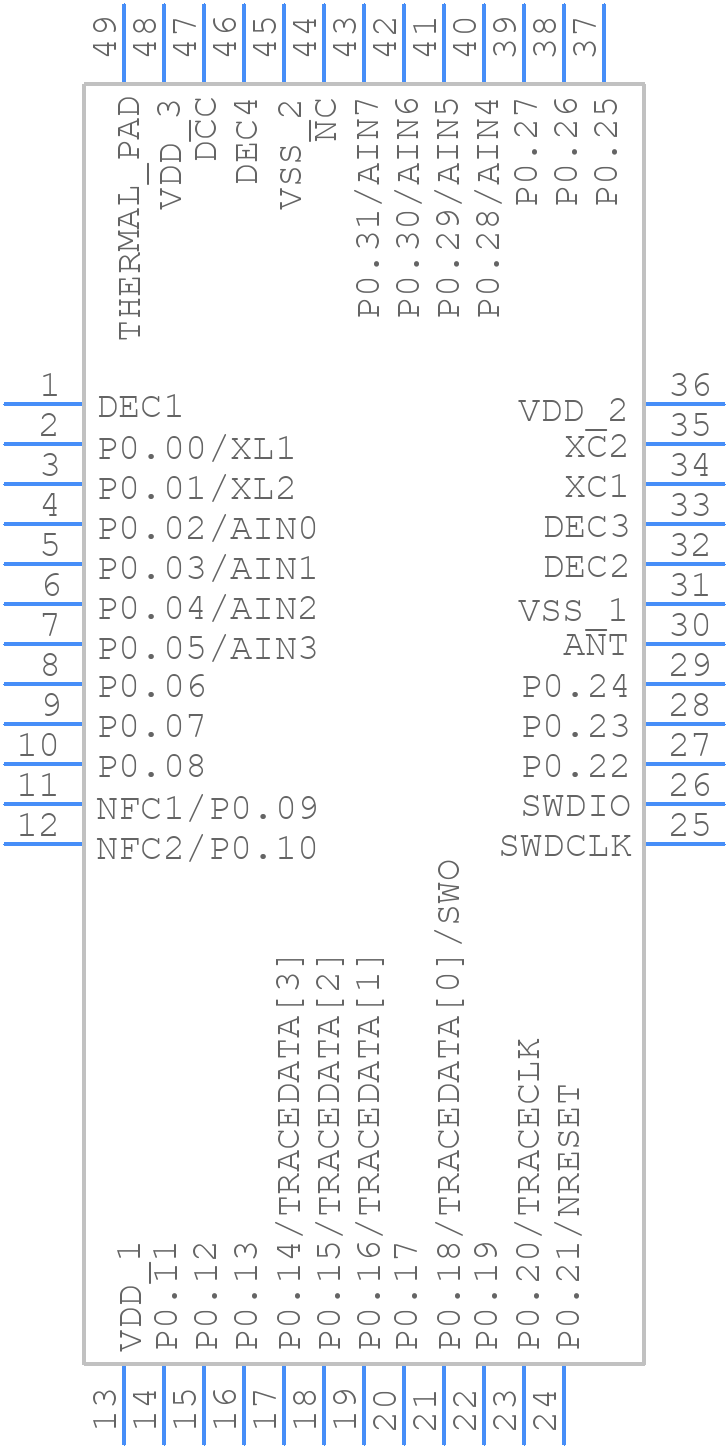

nRF52832-QFAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52832-QFAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (6 X 6)
click to zoom
3D Models
nRF52832-QFAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN48 (6 X 6)
click to zoom

nRF52832-QFAA-R Details

  • Manufacturer Part Number:

    NRF52832-QFAA-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52832-QFAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52832-QFAA-R is -40°C to 85°C.
  • The NRF52832-QFAA-R has a built-in NFC tag functionality that can be configured using the Nordic UART (NUART) interface. You can use the Nordic SDK to configure the NFC tag and set the desired tag type, such as NFC-A or NFC-B.
  • The maximum current consumption of the NRF52832-QFAA-R is approximately 5.4mA in TX mode and 4.6mA in RX mode, depending on the operating frequency and transmission power.
  • The NRF52832-QFAA-R has a built-in secure boot mechanism that can be used to ensure the authenticity and integrity of the firmware. You can use the Nordic SDK to implement secure boot and firmware updates using the Secure Firmware Update (SFU) protocol.
  • The maximum data transfer rate of the NRF52832-QFAA-R is 2Mbps, depending on the operating frequency and transmission power.
