nRF52832-QFAA-R7 - Nordic Semiconductor

Description: RF System on a Chip - SoC Multiprotocol Bluetooth Smart/ANT/2.4GHz SoC

Download nRF52832-QFAA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

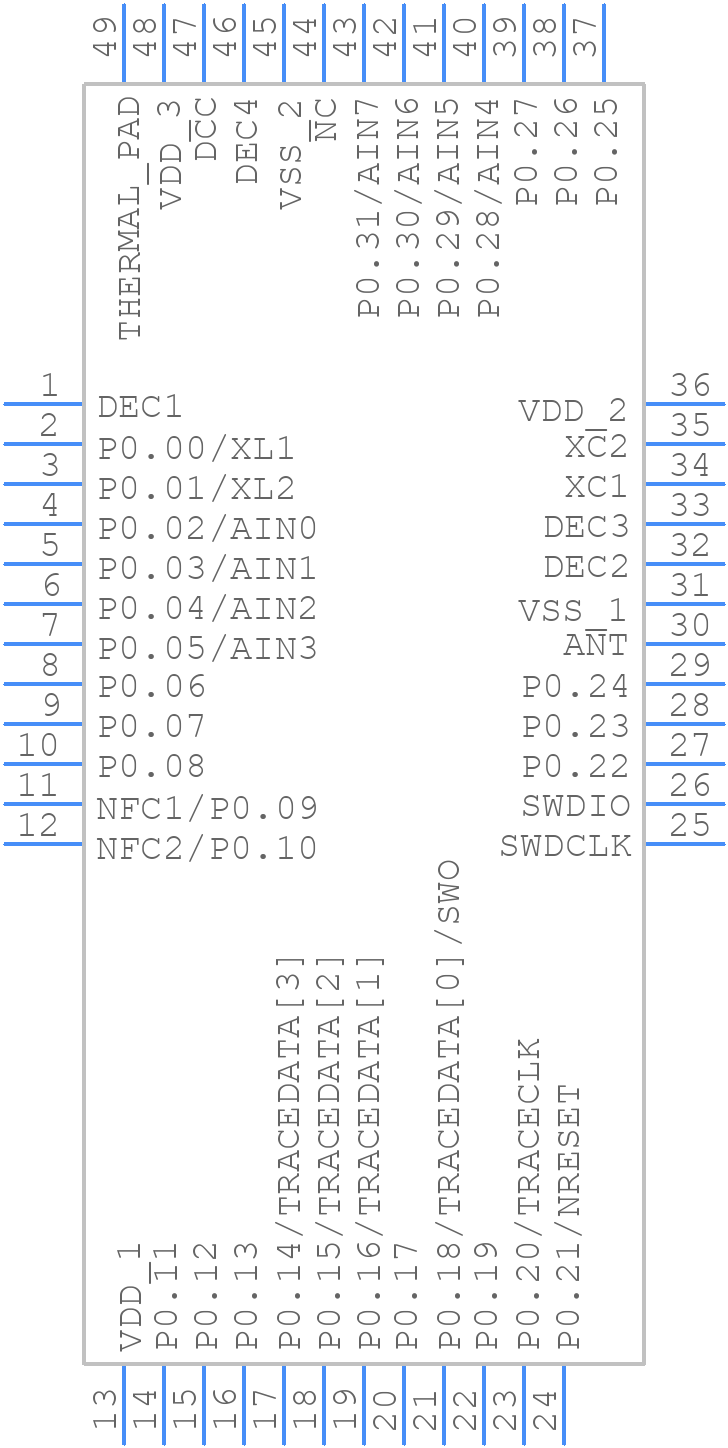

nRF52832-QFAA-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52832-QFAA-R7 - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (6 X 6)
click to zoom
3D Models
nRF52832-QFAA-R7 - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN48 (6 X 6)
click to zoom

nRF52832-QFAA-R7 Details

  • Manufacturer Part Number:

    NRF52832-QFAA-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-48

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    6 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.24SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

nRF52832-QFAA-R7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52832-QFAA-R7 is -40°C to 85°C.
  • The NFC pins on the NRF52832-QFAA-R7 can be configured using the NFC peripheral in the Nordic SDK. Refer to the SDK documentation for more information.
  • The maximum current consumption of the NRF52832-QFAA-R7 is approximately 5.4mA in TX mode and 4.6mA in RX mode, depending on the operating frequency and other factors.
