nRF52833-QDAA-R - Nordic Semiconductor

Description: RF System on a Chip - SoC nRF52833-QDAA QFN 40L 5x5

Download nRF52833-QDAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

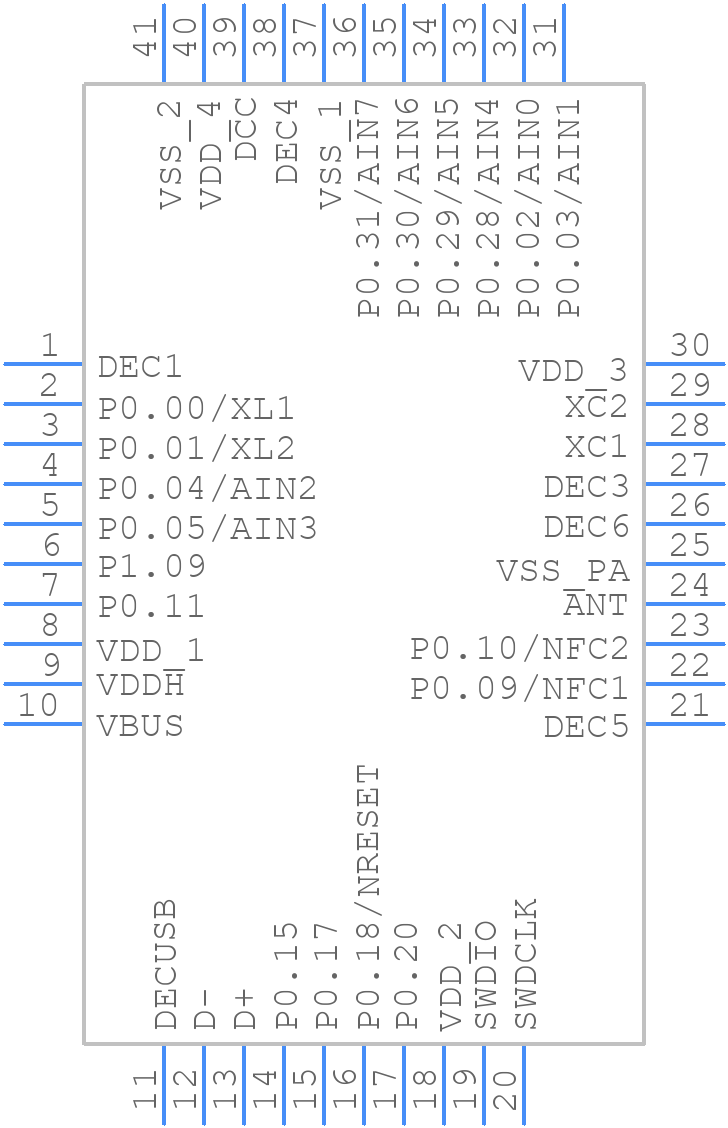

nRF52833-QDAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52833-QDAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Pin QFN
click to zoom
3D Models
nRF52833-QDAA-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - 40-Pin QFN
click to zoom

nRF52833-QDAA-R Details

  • Manufacturer Part Number:

    NRF52833-QDAA-R

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFN-40

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • YTEOL:

    3

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    5 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

nRF52833-QDAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52833-QDAA-R is -40°C to 85°C.
  • The NFC tag functionality on the NRF52833-QDAA-R can be configured using the Nordic UART (NUART) interface. Refer to the Nordic Semiconductor documentation for specific configuration details.
  • The maximum transmit power of the NRF52833-QDAA-R is +4 dBm.
  • Yes, the NRF52833-QDAA-R is compatible with Bluetooth 5.0 and can be used for Bluetooth 5.0 applications.
  • Secure boot on the NRF52833-QDAA-R can be implemented using the Nordic Semiconductor's Secure Bootloader. Refer to the Nordic Semiconductor documentation for specific implementation details.
