- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NRJ4HF-1
- Part Number NRJ4HF-1
- Manufacturer Neutrik
- Pin Count 6
- Part Category Connector
- Package Category Other

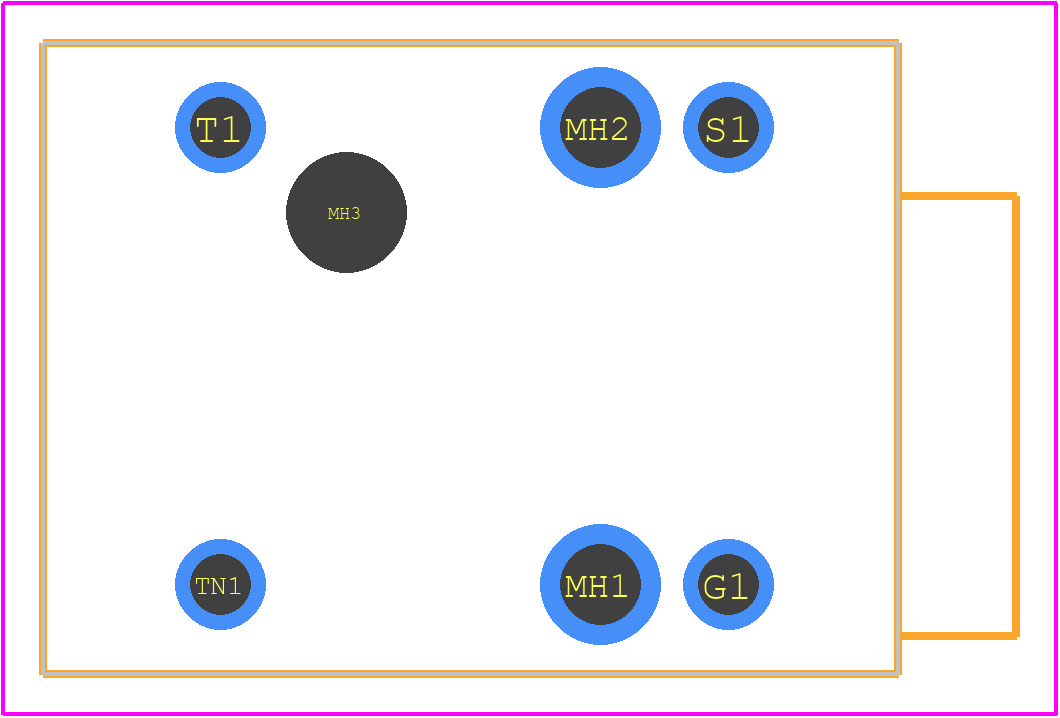

- Footprint Name Other - NRJ4HF-1-4
- Released Date Jul 5, 2019
- Last Modified Date Aug 31, 2025 3:23 PM UTC
- Pinout / Pin List Click Here (Member Only)
NRJ4HF-1 Details
-
Manufacturer Part Number:
NRJ4HF-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Neutrik USA Inc
-
Audio Type:
MONO
-
Body Breadth:
0.5 inch
-
Body Depth:
1.307 inch
-
Body Length:
0.62 inch
-
Body/Shell Style:
JACK
NRJ4HF-1 Frequently Asked Questions (FAQs)
-
The recommended torque for tightening the NRJ4HF-1 connector is 0.5 Nm to 1.5 Nm (0.37 lbf·in to 1.06 lbf·in). Over-tightening can damage the connector.
-
Yes, the NRJ4HF-1 connector is suitable for outdoor use. It has an IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
-
Yes, the NRJ4HF-1 connector is designed to be compatible with other Neutrik products, such as their XLR connectors and adapters. However, it's always recommended to check the compatibility before making a purchase.
-
The maximum cable diameter that can be used with the NRJ4HF-1 connector is 6.5 mm (0.256 in). Using a cable with a larger diameter may not fit properly or may damage the connector.
-
Yes, the NRJ4HF-1 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in the European Union and other regions with similar regulations.
Trust Checks
Expert Contribution
System Verified
Community Approved
NRJ4HF-1 Overview
Use the download button to access the NRJ4HF-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRJ4H,
or try a keyword search, such as Audio/RCA Connectors
About Neutrik
Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
