NRJ4HF - Neutrik

Description: Phone Connectors 1/4" PHONE JACK NO HARDWARE INCLUDED

Download NRJ4HF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NRJ4HF - Neutrik - PCB symbol
click to zoom
PCB Footprints

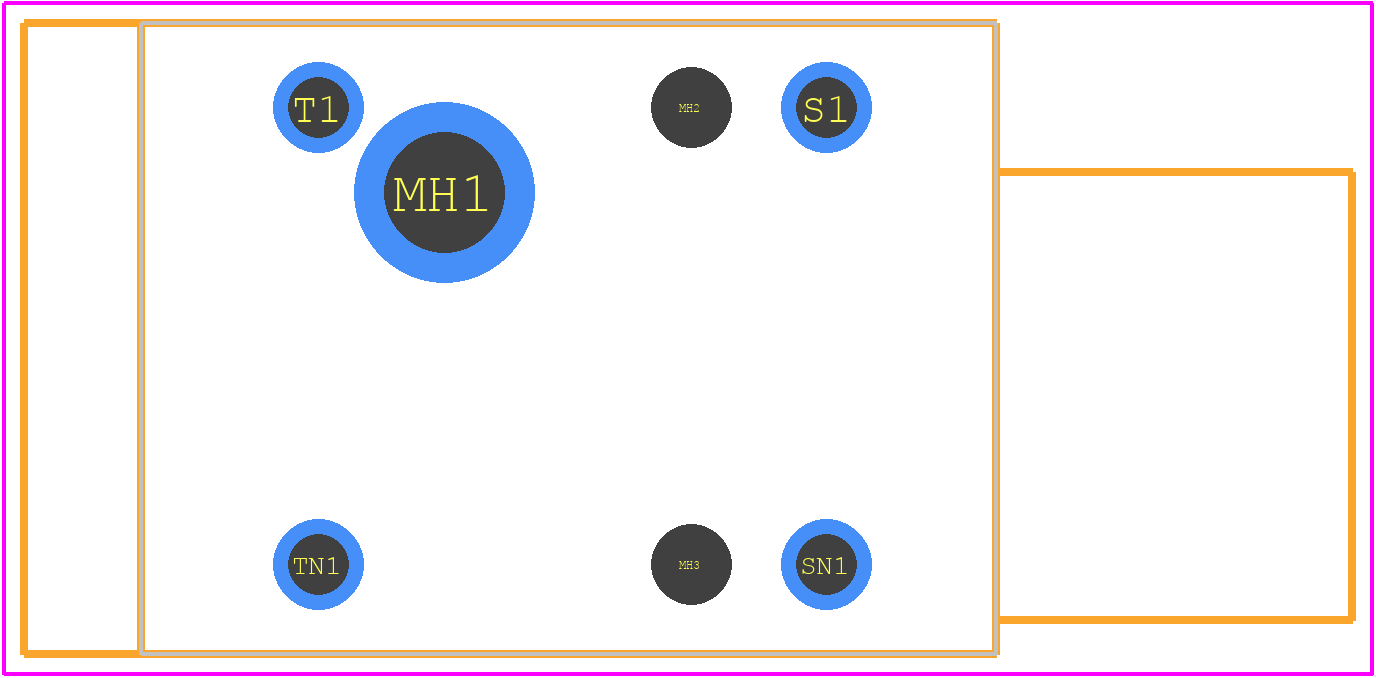

NRJ4HF - Neutrik PCB footprint - Other - Other - NRJ4HF-1
click to zoom
3D Models
NRJ4HF - Neutrik - 3D model - Other - NRJ4HF-1
click to zoom

NRJ4HF Details

  • Manufacturer Part Number:

    NRJ4HF

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • Audio Type:

    MONO

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.957 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    6.3MM AUDIO

  • Contact Finish Mating:

    AG

  • Contact Gender:

    MALE

  • Contact Material:

    BRONZE

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VDC V

  • Durability:

    10000 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    2

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Plating Thickness:

    79u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.128 inch

  • Termination Type:

    SOLDER

NRJ4HF Frequently Asked Questions (FAQs)

  • The recommended torque for the NRJ4HF connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 1.5 Nm to 2.5 Nm (13.3 in-lbs to 22.1 in-lbs) for the hex nuts.
  • Yes, the NRJ4HF connector is suitable for outdoor use. It has an IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in harsh environments.
  • Yes, the NRJ4HF connector is designed for high-power applications. It has a current rating of up to 40 A and a voltage rating of up to 600 V, making it suitable for use in high-power audio and lighting systems.
  • Yes, the NRJ4HF connector is compatible with other Neutrik products, including their range of XLR connectors and adapters. It is also compatible with other industry-standard connectors and adapters.
  • The operating temperature range of the NRJ4HF connector is -30°C to +80°C (-22°F to +176°F), making it suitable for use in a wide range of environments.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRJ4HF Overview

Use the download button to access the NRJ4HF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRJ4H, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
