Part Image

NRJ6HF-AU - Neutrik

Description: Phone Connectors 3C STEREO 3-SPST GLD NO HARDWARE INCLUDED

Download NRJ6HF-AU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NRJ6HF-AU - Neutrik - PCB symbol
click to zoom
PCB Footprints

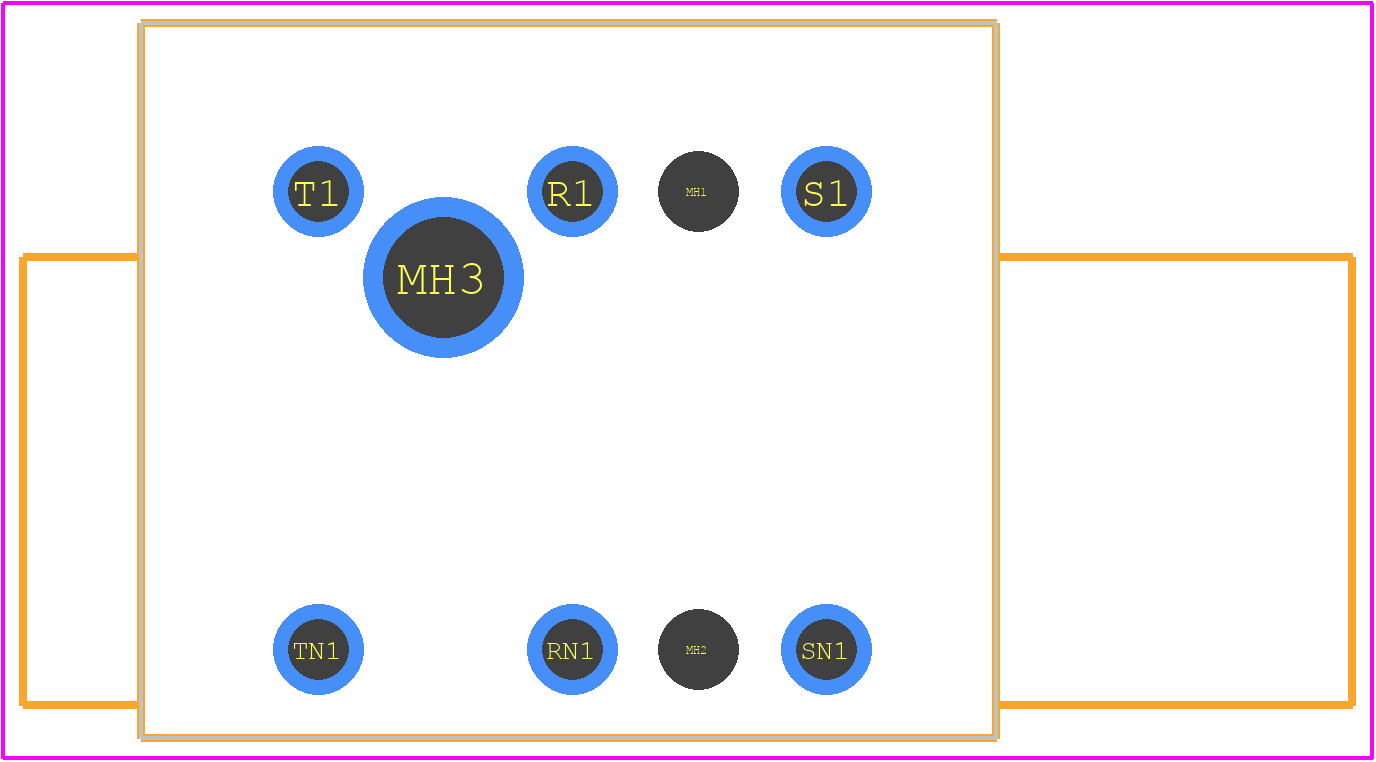

NRJ6HF-AU - Neutrik PCB footprint - Other - Other - NRJ6HF-AU-3
click to zoom
3D Models
NRJ6HF-AU - Neutrik - 3D model - Other - NRJ6HF-AU-3
click to zoom

NRJ6HF-AU Details

  • Manufacturer Part Number:

    NRJ6HF-AU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    7

  • Audio Type:

    STEREO

  • Body Breadth:

    0.5 inch

  • Body Depth:

    0.957 inch

  • Body Length:

    0.62 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    6.3MM AUDIO

  • Contact Finish Mating:

    AU

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRONZE

  • Contact Resistance:

    10 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VDC V

  • Durability:

    10000 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    3

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Plating Thickness:

    8u inch

  • Polarization Key:

    POLARIZED KEY

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.128 inch

  • Termination Type:

    SOLDER

NRJ6HF-AU Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the NRJ6HF-AU connector is 0.5 Nm to 1.5 Nm (5-13 in-lbs).
  • Yes, the NRJ6HF-AU connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
  • No, the NRJ6HF-AU connector is not suitable for high-power applications. It is designed for audio and data transmission, and its current rating is limited to 2A.
  • Yes, the NRJ6HF-AU connector is compatible with other Neutrik connectors, such as the NRJ6HF-B and NRJ6HF-C, but it's always recommended to check the specific compatibility before use.
  • The NRJ6HF-AU connector can be cleaned with a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that may damage the connector.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRJ6HF-AU Overview

Use the download button to access the NRJ6HF-AU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRJ6H, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
