NRJ6HM-1-PRE footprint, schematic symbol and 3D model by Neutrik

Symbol

click to zoom

PCB Footprints

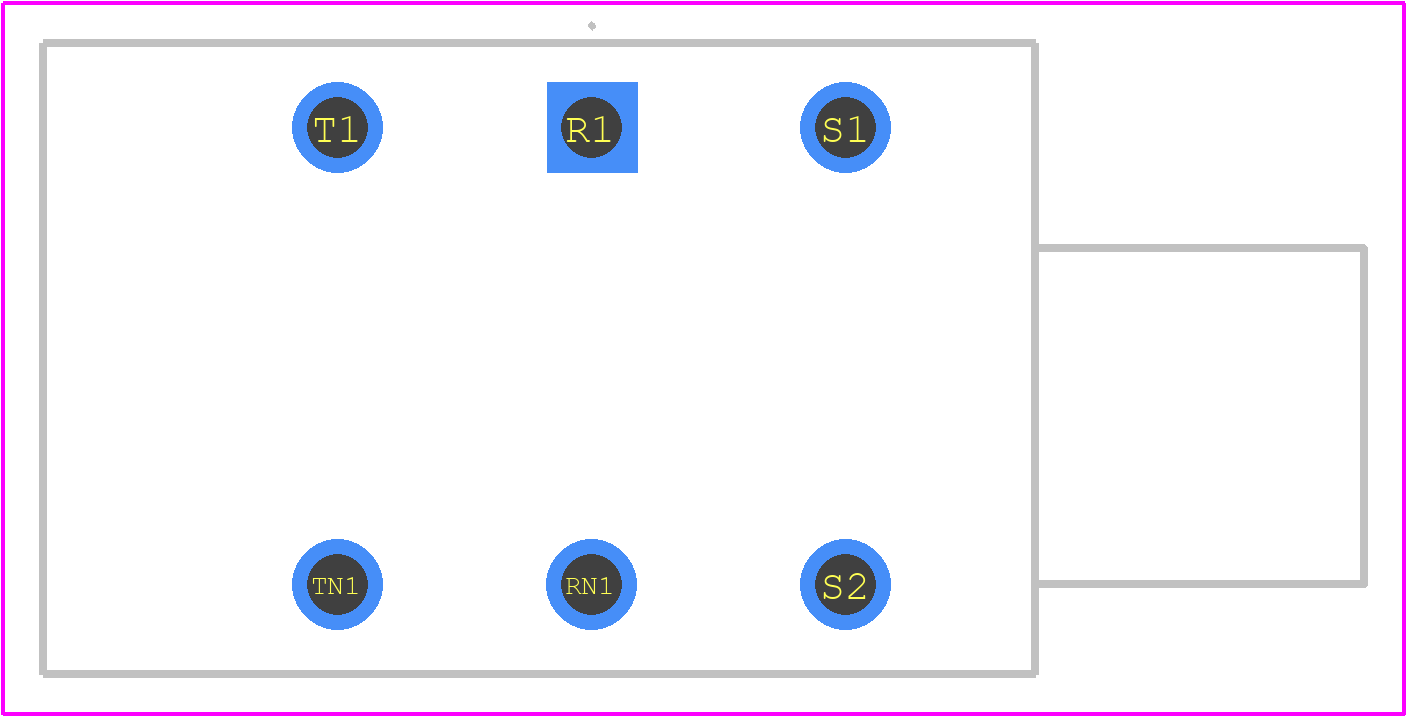

NRJ6HM-1-PRE - Neutrik PCB footprint - Other - Other - NRJ6HM-1-PRE-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NRJ6HM-1-PRE
Part Number NRJ6HM-1-PRE
Manufacturer Neutrik
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - NRJ6HM-1-PRE-2
Released Date Sep 20, 2021
Last Modified Date May 30, 2026 11:26 AM UTC
Pinout / Pin List Click Here (Member Only)

NRJ6HM-1-PRE Details

Manufacturer Part Number:
NRJ6HM-1-PRE
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Neutrik USA Inc
Connector Type:
6.3 MM AUDIO

NRJ6HM-1-PRE Frequently Asked Questions (FAQs)

The recommended torque for tightening the NRJ6HM-1-PRE connector is 0.5 Nm to 1.5 Nm (5-13 in-lbs).
Yes, the NRJ6HM-1-PRE connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
No, the NRJ6HM-1-PRE connector is not designed for high-power applications. It is rated for a maximum current of 10 A and a maximum voltage of 250 V.
Yes, the NRJ6HM-1-PRE connector is compatible with other Neutrik connectors, such as the NRJ6HH-1-PRE and NRJ6HM-2-PRE.
The NRJ6HM-1-PRE connector is rated for operation in temperatures ranging from -20°C to 75°C (-4°F to 167°F). It is not recommended for use in high-temperature environments above 75°C.

Trust Checks

Community Provided

System Verified

Community Approved

NRJ6HM-1-PRE Overview

Use the download button to access the NRJ6HM-1-PRE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NRJ6H, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
